Key Features
- 1Handle up to 35A current for efficient AC-3 power distribution. 2、Support motors rated up to 18.5 kW at 400V for robust control. 3、Utilize a reliable 4-pole configuration for diverse industrial applications. 4、Operate effectively with 48-80V DC coil voltage for design flexibility. 5、Ensure reliable switching with integrated auxiliary contacts 1 NO + 1 NC.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 2NO+2NC | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 1NO1NC | Coil Frequency | DC |
| Coil Power Supply | DC | Number of Poles | 4P |
| Rated Current AC-3 | 35A | Specification | S2 |
| Product Type | Quadruple Pole Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |

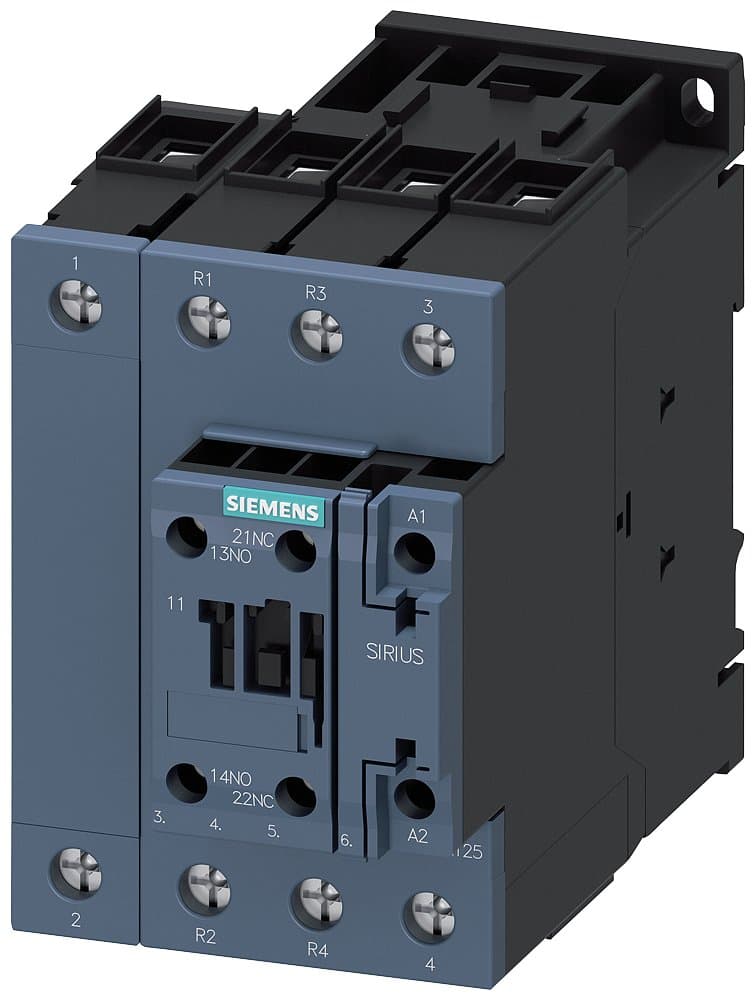

| AL | N | Model | 3RT2535-1NE30 |
Specifications may be subject to change without notice
