Key Features
- 1Operate on both AC and DC voltages for versatile system integration. 2、Handle demanding loads with a high 75 kW power rating. 3、Enhance control reliability with 2NO + 2NC auxiliary contacts. 4、Save panel space using the compact S6 busbar connection design. 5、Ensure safety and performance meeting IEC 60947-1 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 2NO2NC | Coil Frequency | AC/DC |
| Coil Power Supply | AC/DC | Number of Poles | 3P |
| Rated Current AC-3 | 150A | Specification | S6 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |

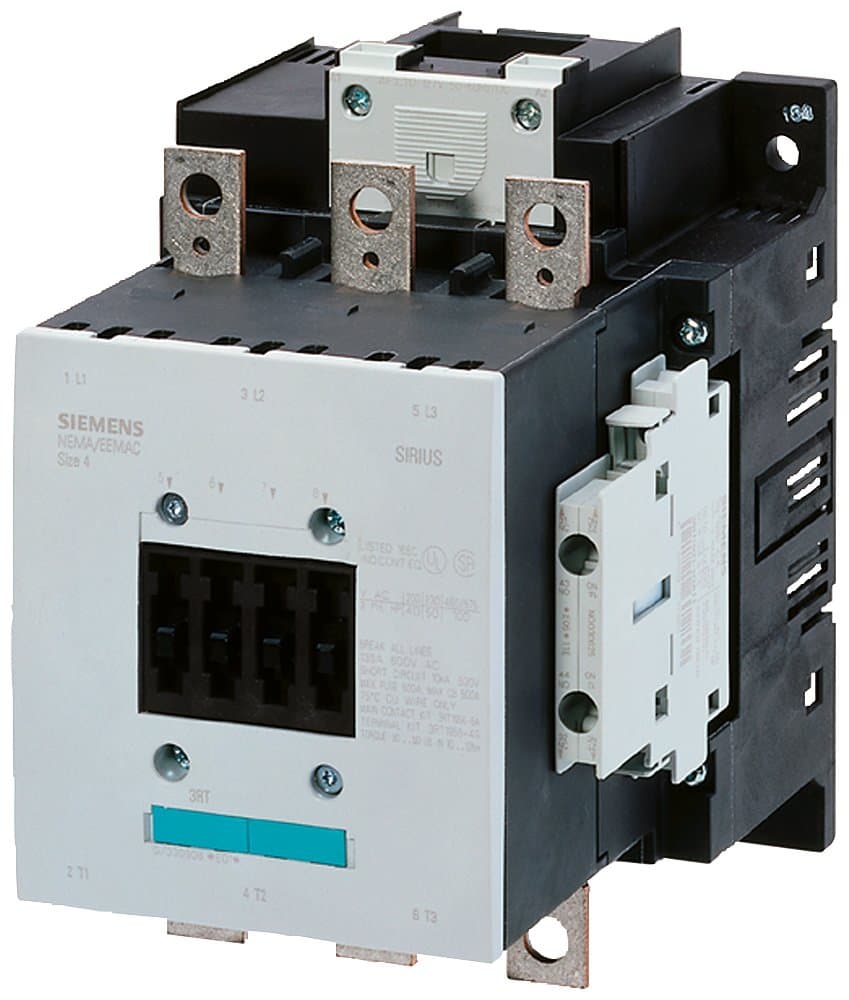

| AL | N | Model | 3RT5055-6AB36 |
Specifications may be subject to change without notice
