Key Features
- 1Control motors up to 160 kW at 400 V AC for demanding applications. 2、Ensure operational safety with an integrated surge suppressor. 3、Simplify wiring with 2 NO and 2 NC auxiliary contacts. 4、Install easily using screw terminals and a compact S10 design. 5、Rely on robust construction for AC-3 and AC-3e rated performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 2NO2NC | Coil Frequency | AC/DC |
| Coil Power Supply | AC/DC | Number of Poles | 3P |
| Rated Current AC-3 | 300A | Specification | S10 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |

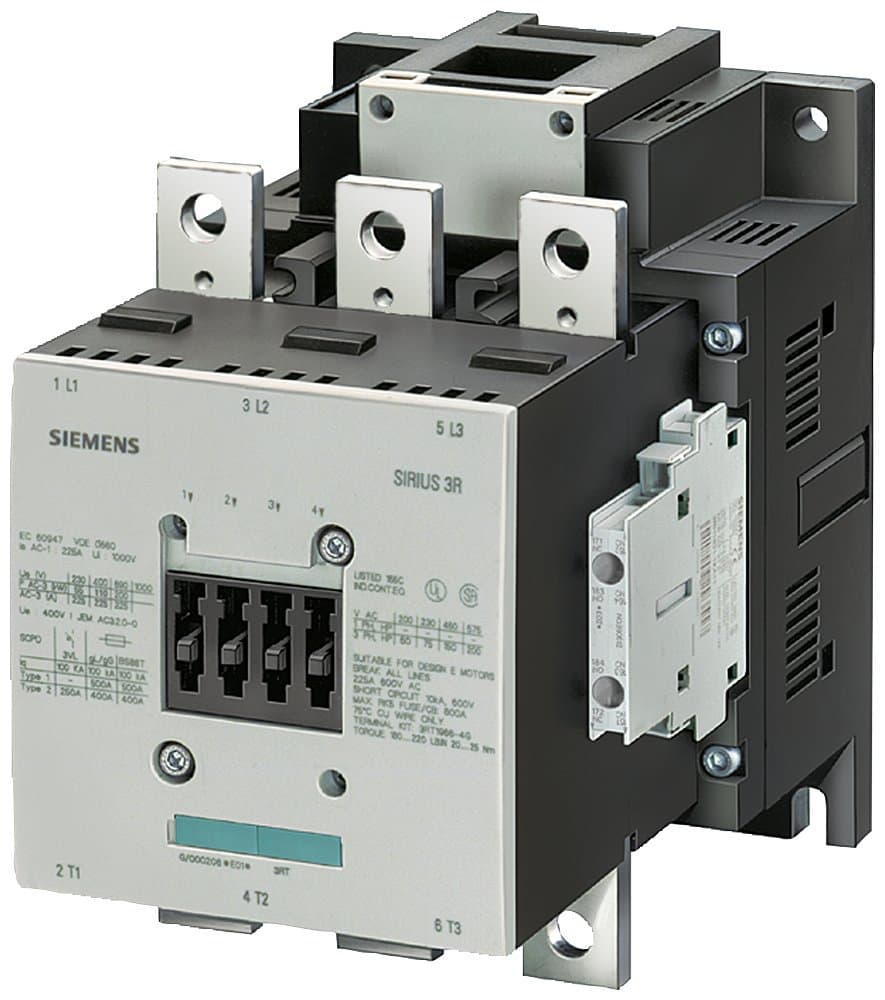

| AL | N | Model | 3RT5066-6AF36 |
Specifications may be subject to change without notice
