Key Features
- 1Handle high-power loads up to 250 kW at 400 V AC/DC. 2、Utilize a versatile 42-48 V UC coil voltage range. 3、Rely on 2 NO + 2 NC auxiliary contacts for control. 4、Simplify installation with screw terminals and busbar connection. 5、Ensure compliance with RoHS and REACH standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 2NO2NC | Coil Frequency | AC/DC |
| Coil Power Supply | AC/DC | Number of Poles | 3P |
| Rated Current AC-3 | 500A | Specification | S12 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |

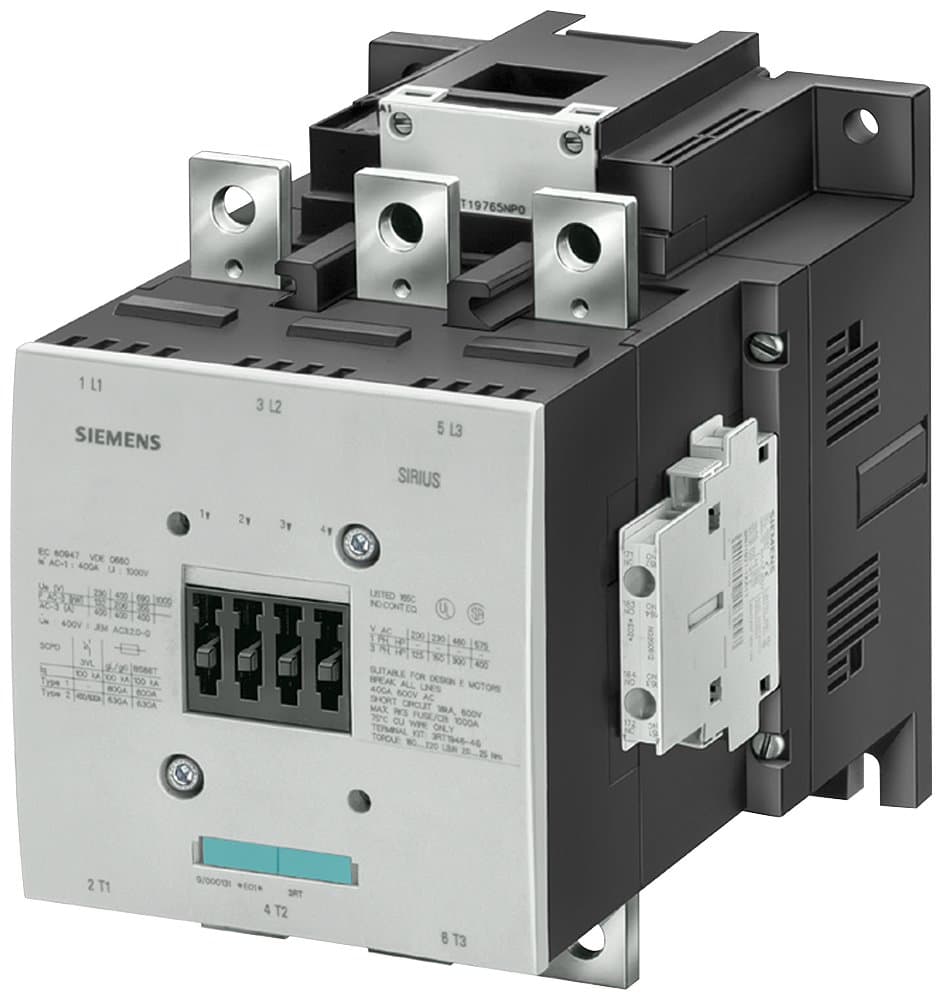

| AL | N | Model | 3RT5076-6AD36 |
Specifications may be subject to change without notice
