Key Features
- 1Execute demanding AC-3 applications with 9 A, 4 kW / 400 V rating. 2、Ensure reliable electrical control for consistent system uptime. 3、Integrate easily into panels with a compact, space-saving design. 4、Simplify installation using standard screw terminal connections. 5、Access comprehensive support with manuals and certificates.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 1NC | Coil Frequency | 50/60HZ |
| Coil Power Supply | AC | Number of Poles | 3P |
| Rated Current AC-3 | 9A | Specification | S00 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |

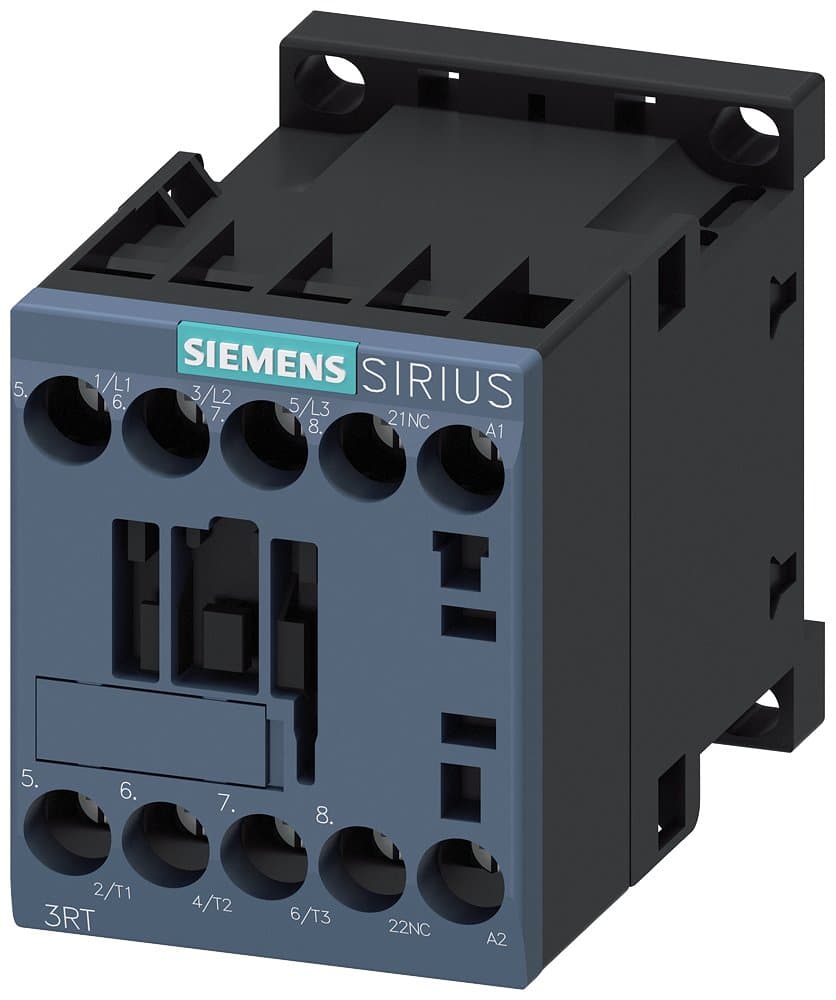

| AL | N | Model | 3RT6016-1AK22 |
Specifications may be subject to change without notice
