Key Features
- 1Achieve high efficiency with a 4 kW AC3 rating at 400 V. 2、Ensure reliable performance in demanding industrial automation systems. 3、Simplify installation using versatile screw terminals. 4、Protect your system with integrated surge suppression. 5、Meet safety standards including IEC 60947-1 and EN 50274.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Remarks | Control voltage range is (0.7-1.25)*Us, Surge suppressor integrated | Main Contacts Contact Form | 3NO |
| Mechanical Life | 30 million operations (without auxiliary contacts on the main body) | Operating Temperature Range | -25~+60℃ |
| Auxiliary Contacts | 1NO | Coil Voltage | 110V DC |
| Coil Power Supply | DC | Coil Frequency | DC |
| Number of Poles | 3P | Specification | S00 |
| Rated Current AC-3 | 9A | Product Type | Wide Voltage Coil Contactor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |

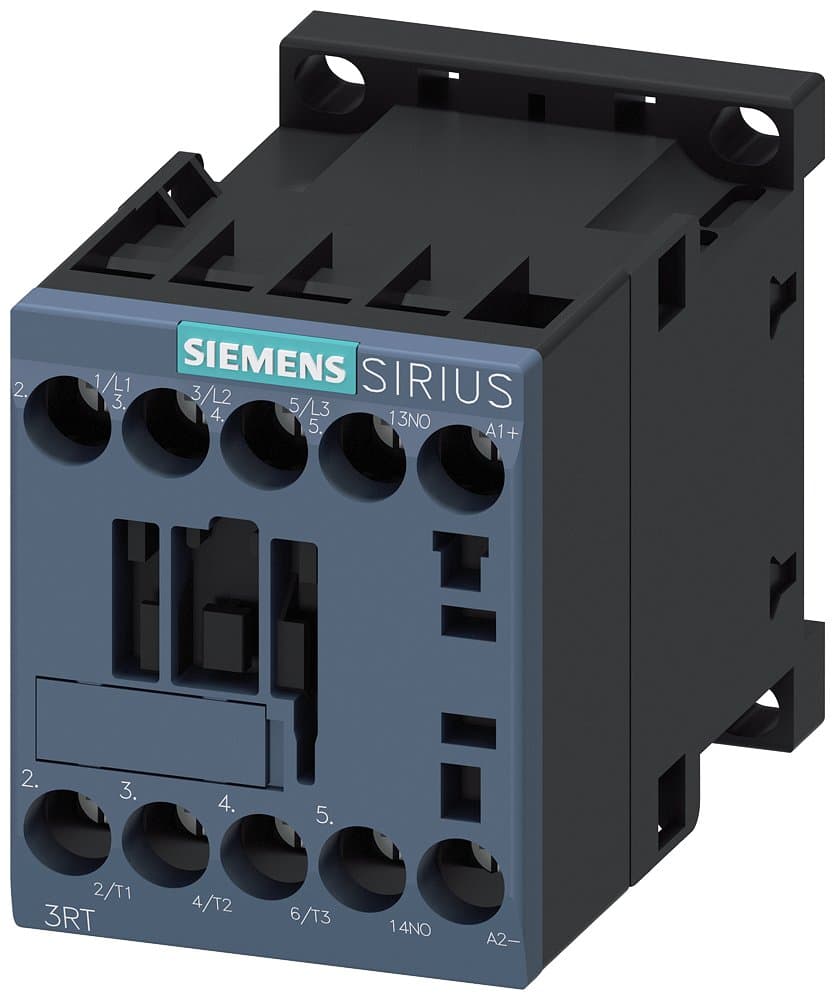

| Model | 3RT6016-1KF41 |
Specifications may be subject to change without notice
