Key Features
- 1Handle up to 11kW for robust high-power transmission. 2、Ensure reliable operation in demanding electrical systems. 3、Apply versatilely across various industrial power applications. 4、Integrate seamlessly with 1 NO + 1 NC auxiliary contacts. 5、Meet RoHS and WEEE compliance regulations effortlessly.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contacts Configuration | 3NO | Mechanical Life | 10 million cycles |
| Operating Temperature Range | -25~+60℃ | Auxiliary Contacts | 1NO1NC |
| Coil Voltage | 220V AC 50Hz | Coil Power Supply | 50Hz |
| Coil Frequency | AC | Number of Poles | 3P |
| Specification | S0 | Rated Current AC-3 | 25A |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |

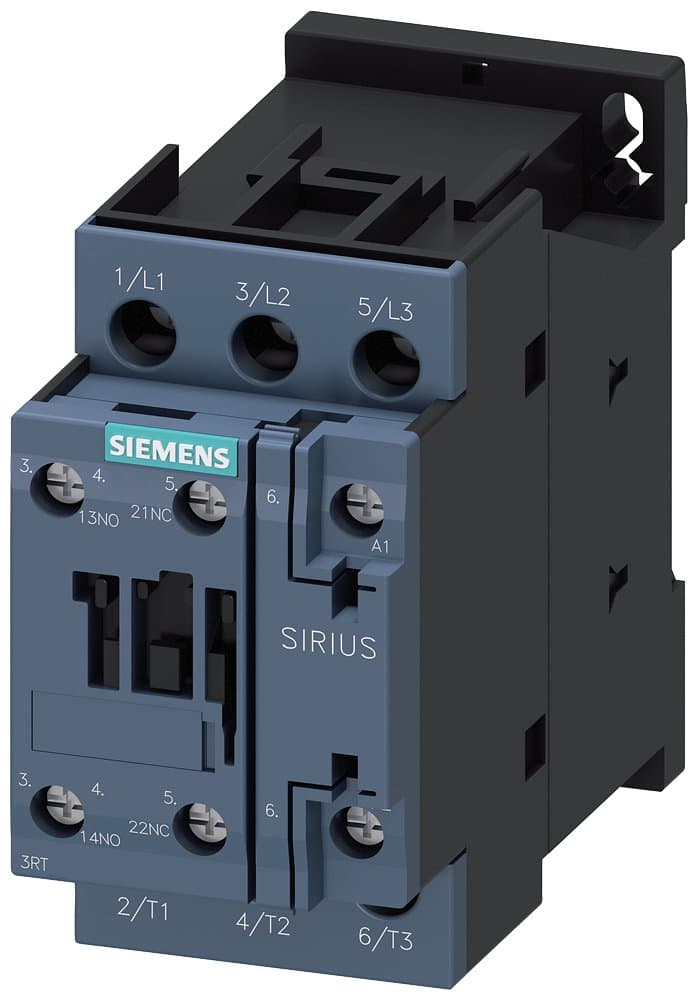

| AL | N | Model | 3RT6026-1AM00 |
Specifications may be subject to change without notice
