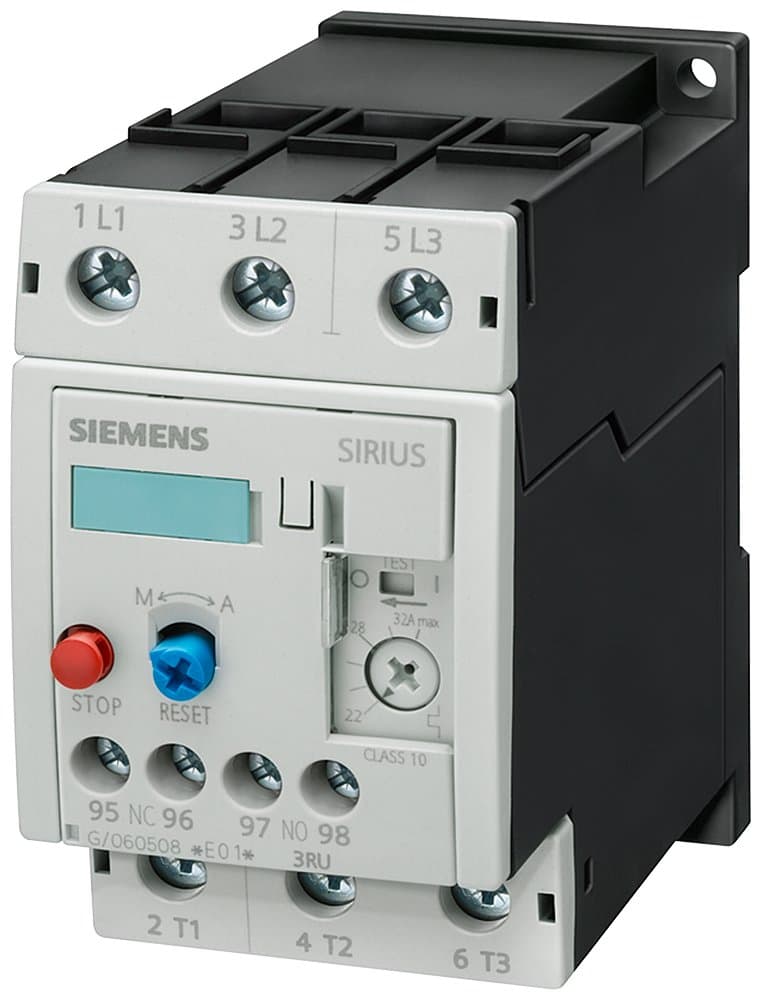

3RU5136-4GB1
Product ID:212594
Updated: 2026/4/3
Key Features
- 1Protect motors with a high current rating of 36-45 A. 2、Ensure reliable operation with a precise Class 10 tripping characteristic. 3、Choose convenience via manual or automatic reset options. 4、Simplify installation using screw terminals for main and auxiliary circuits. 5、Meet environmental standards with full RoHS compliance since 2006.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Ambient Temperature | -40~+70°C | Operating Altitude | Up to 2000m |
| Rated Voltage | AC400V | Mounting Method | Screw Terminal Connection, Independent Installation |
| Specification | S2 | Load Rating | CLASS 10 |
| Current Setting Range | 36-45A | Rated Current (AC-3) | Max 45A for S2 Size |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3RU5136-4GB1 |
Specifications may be subject to change without notice
