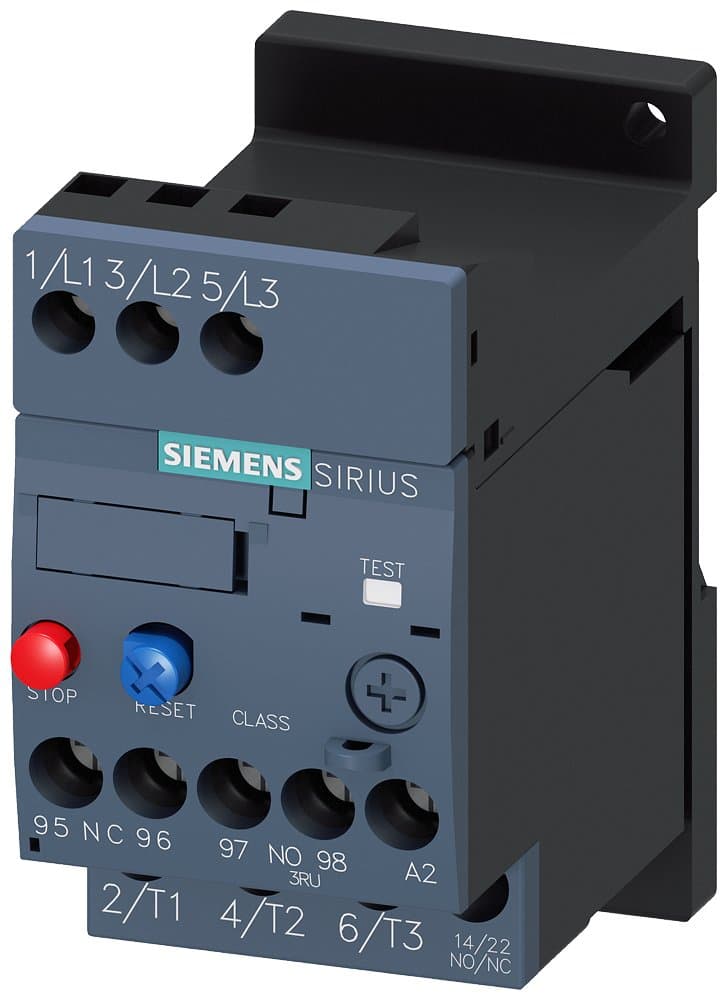

3RU6116-0FB1
Product ID:225693
Updated: 2026/4/3
Key Features
- 1Ensure reliable motor protection with Class 10 performance. 2、Choose manual or automatic reset for operational flexibility. 3、Simplify installation using screw terminals for all circuits. 4、Save panel space with a compact 49x104x91 mm design. 5、Meet RoHS and WEEE compliance standards effortlessly.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Ambient Temperature | -40~+70°C | Operating Altitude | Up to 2000m |
| Rated Voltage | AC400V | Installation Method | Screw Terminal, Independent Installation |
| Specification | S00 | Load Class | Class 10 |
| Current Setting Range | 0.35-0.5A | Rated Current (AC-3) | Max. 16A for S00 size |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3RU6116-0FB1 |
Specifications may be subject to change without notice
