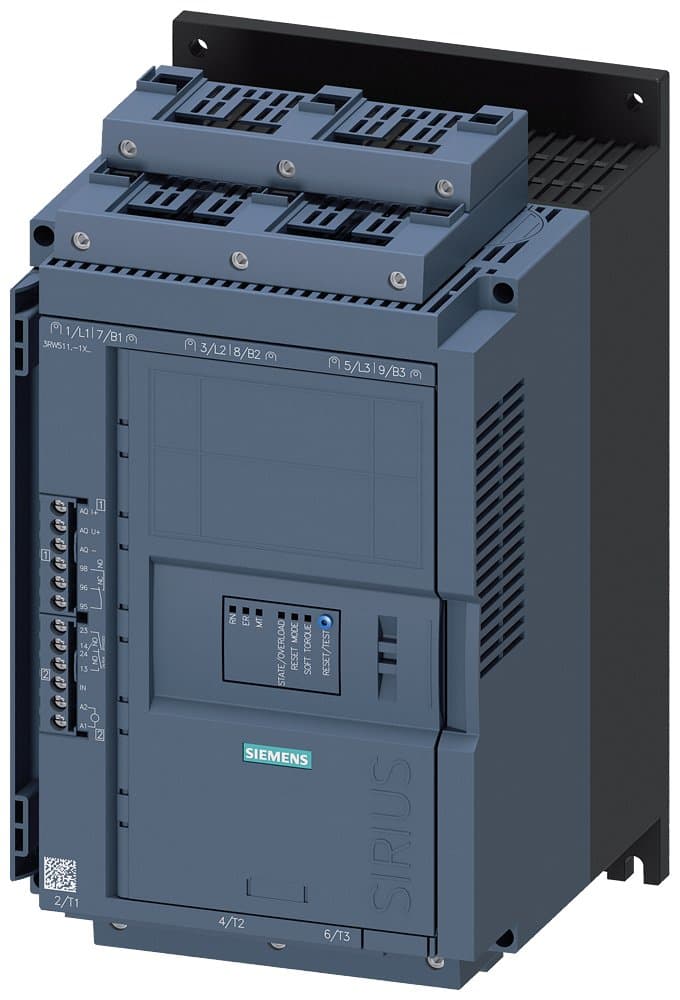

3RW5114-1XC14
Product ID:206296
Updated: 2026/4/3
Key Features
- 1Optimize energy consumption and enhance motor performance. 2、Build systems with durable, long-lasting Siemens components. 3、Apply across diverse industrial motor control applications. 4、Simplify installation using reliable screw terminals. 5、Achieve precise process control via analog output.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Control Method | AC | Integrated Motor Overload Protection | true |
| Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 15kW |
| Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 7.5kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 7.5kW |
| Rated Power (Three-phase Motor, Standard Circuit, 230V) | 4kW | Rated Operating Current Ie (40°C Tu) | 18A |
| Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
| Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
| Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 9N9999 |
| AL | N | Model Number | 3RW5114-1XC14 |
Specifications may be subject to change without notice
