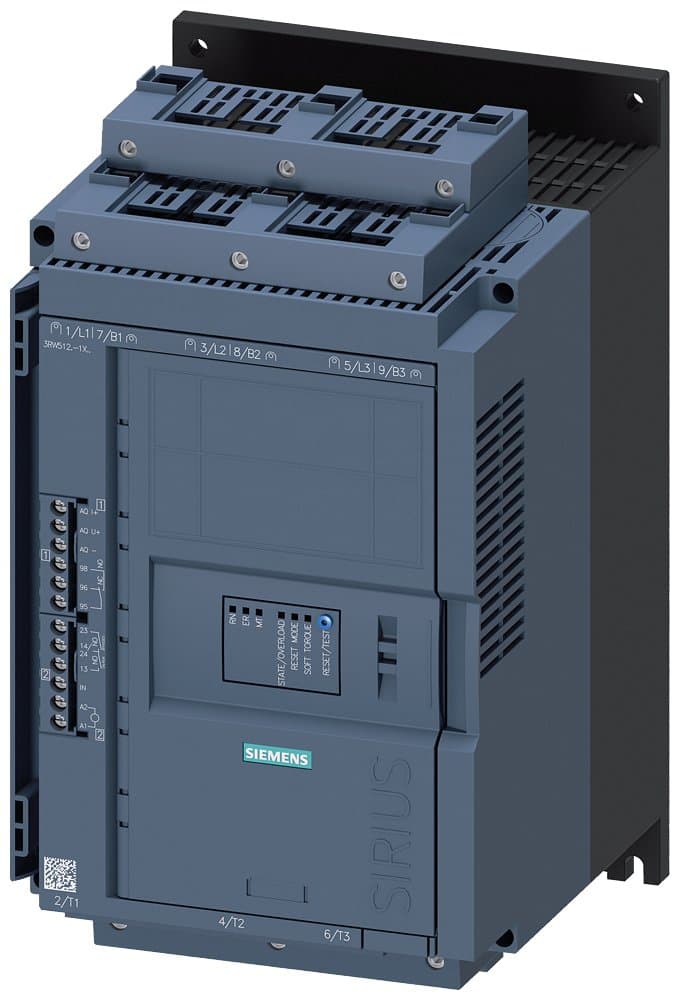

3RW5125-1XC14
Product ID:213841
Updated: 2026/4/3
Key Features
- 1Start motors smoothly with adjustable voltage and ramp-up time. 2、Protect your motor with integrated electronic overload protection. 3、Avoid current peaks using the adjustable current limit setting. 4、Access extended diagnostics via the optional 3RW5 HMI. 5、Integrate seamlessly using the optional communication module.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Control Method | AC | Integrated Motor Overload Protection | true |
| Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 55kW |
| Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 30kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 30kW |
| Rated Power (Three-phase Motor, Standard Circuit, 230V) | 18.5kW | Rated Operating Current Ie (40°C Tu) | 63A |
| Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
| Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
| Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 9N9999 |
| AL | N | Model Number | 3RW5125-1XC14 |
Specifications may be subject to change without notice
