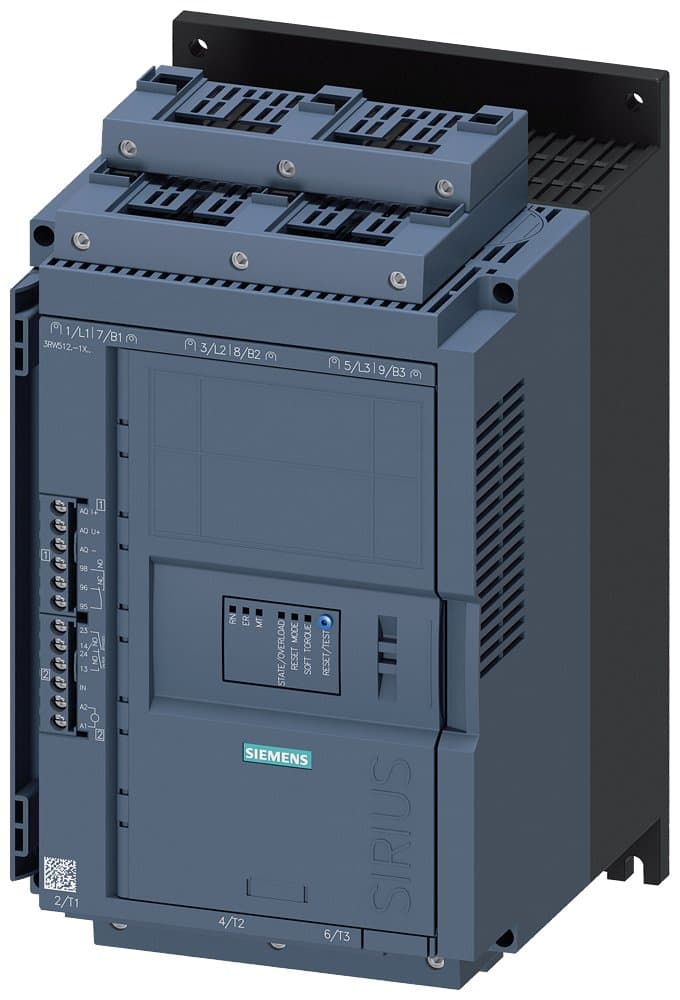

3RW5126-1XC14
Product ID:154555
Updated: 2026/4/4
Key Features
- 1Ensure smooth motor start-up with efficient decompression technology to reduce equipment wear. 2、Handle demanding applications with a high current rating of up to 77 amps. 3、Achieve versatile installation across 200-480V and 110-250V AC electrical systems. 4、Meet strict safety standards with 3C certificate compliance for reliable operation. 5、Minimize downtime using high-quality components built for consistent performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Control Method | AC | Integrated Motor Overload Protection | true |
| Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 75kW |
| Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 37kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 37kW |
| Rated Power (Three-phase Motor, Standard Circuit, 230V) | 22kW | Rated Operating Current Ie (40°C Tu) | 77A |
| Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
| Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
| Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 9N9999 |
| AL | N | Model Number | 3RW5126-1XC14 |
Specifications may be subject to change without notice
