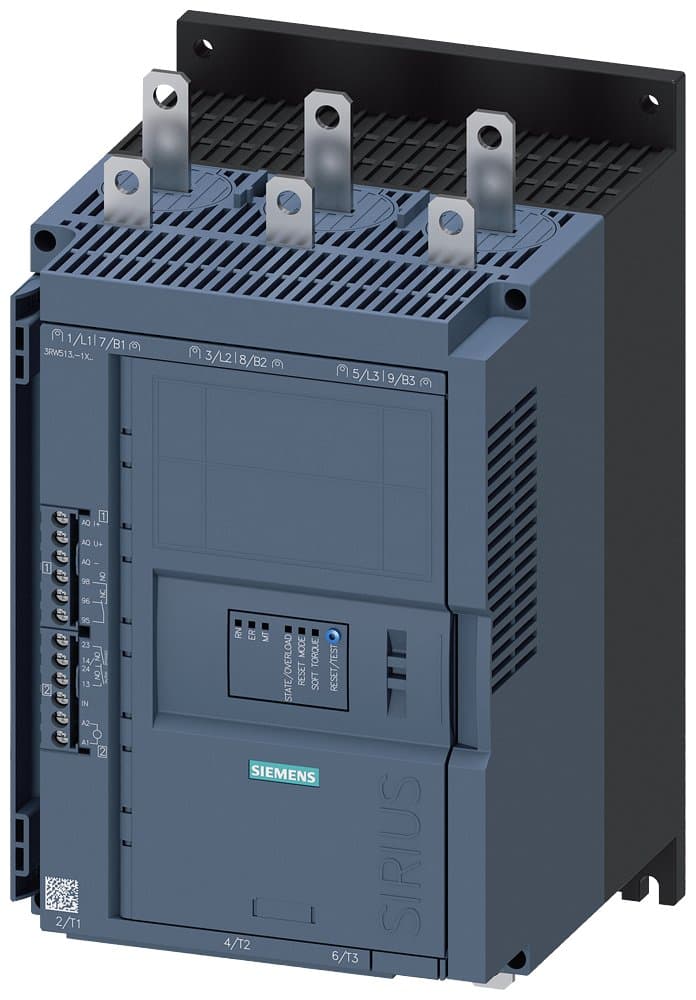

3RW5134-1XC14
Product ID:133829
Updated: 2026/4/3
Key Features
- 1Ensure efficient decompression starts for smooth motor control. 2、Adjust starting voltage and ramp-up time for optimal performance. 3、Prevent current peaks to extend motor lifespan. 4、Ramp torque smoothly to avoid peaks and ensure stability. 5、Monitor performance with LED displays and optional HMI.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Control Method | AC | Integrated Motor Overload Protection | true |
| Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 110kW |
| Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 55kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 55kW |
| Rated Power (Three-phase Motor, Standard Circuit, 230V) | 30kW | Rated Operating Current Ie (40°C Tu) | 113A |
| Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
| Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
| Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 9N9999 |
| AL | N | Model Number | 3RW5134-1XC14 |
Specifications may be subject to change without notice
