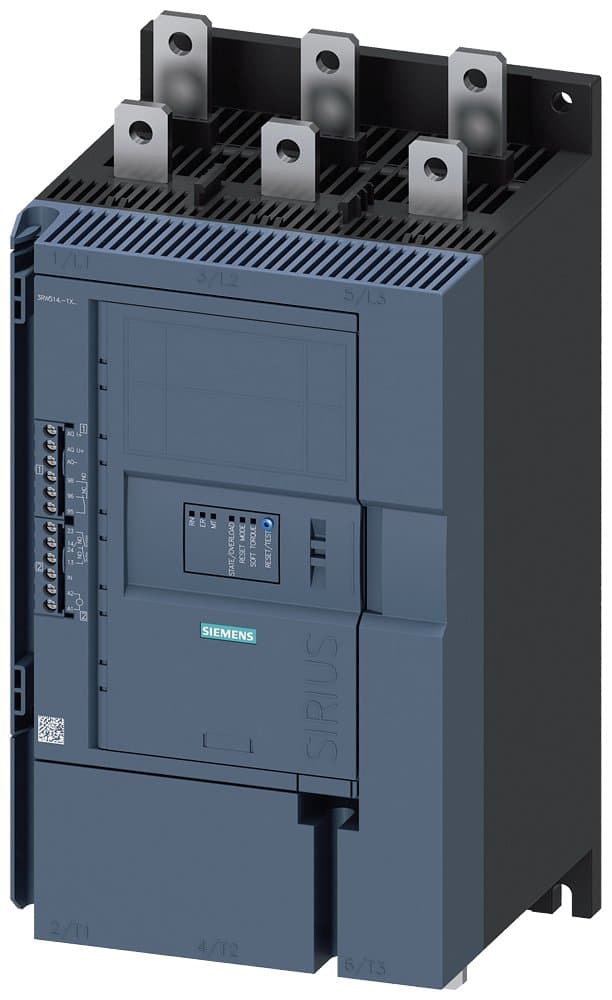

3RW5146-1XC14
Product ID:104844
Updated: 2026/7/2
Key Features
- 1Control motor starts smoothly with parameterizable ramp times.
- 2Protect motors using integrated electronic overload protection.
- 3Ensure device reliability with intrinsic overload safeguards.
- 4Extend functionality via optional 3RW5 HMI for diagnostics.
- 5Upgrade device firmware to maintain system compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Control Method | AC | Integrated Motor Overload Protection | true |
| Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 355kW |
| Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 200kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 200kW |
| Rated Power (Three-phase Motor, Standard Circuit, 230V) | 110kW | Rated Operating Current Ie (40°C Tu) | 370A |
| Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
| Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
| Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3RW5146-1XC14 |
Specifications may be subject to change without notice
