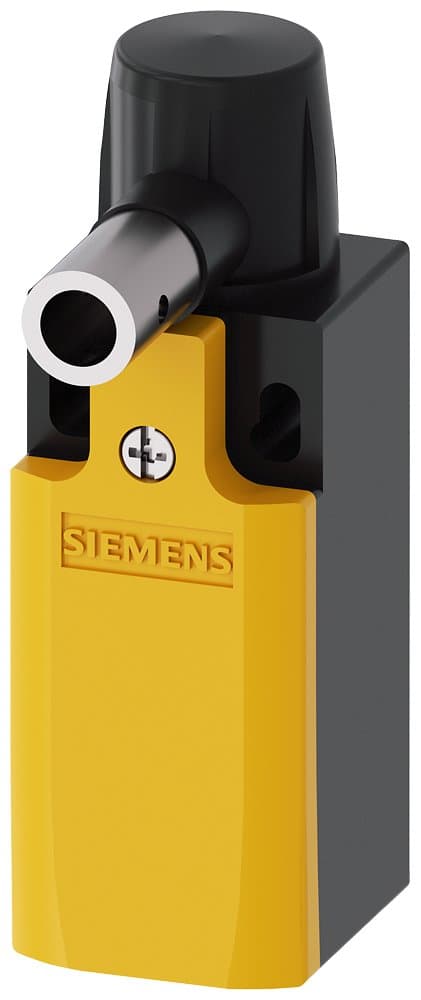

3SE5232-0HU21
Product ID:207163
Updated: 2026/7/2
Key Features
- 1Ensure immediate shutdown with quick-action contacts.
- 2Meet EN 50047 standards via 31mm plastic enclosure.
- 3Provide precise switching via 2 NC/1 NO snap-action contacts.
- 4Enable precise positioning with 8mm shaft and 10° angle.
- 5Guarantee global use with IEC and UL safety approvals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sensor Length | 92mm | Sensor Height | 52.8mm |
| Sensor Width | 31mm | Number of Transfer Contacts | 0 |
| Number of Make Contacts | 1 | Number of Break Contacts | 1 |
| Rated Operating Current Ie (DC-13, 24V) | 3A | Rated Operating Current Ie (AC-15, 24V) | 3A |
| Number of Safety-Related Auxiliary Contacts | 1 | Enclosure Material | Plastic |
| Product Type | Hinged Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3SE5232-0HU21 |
Specifications may be subject to change without notice
