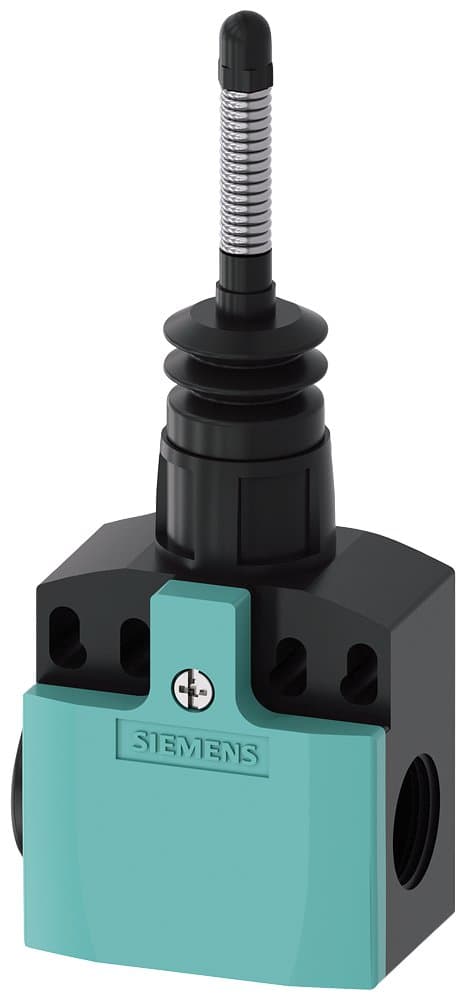

3SE5242-0HR03-1AL4
Product ID:226148
Updated: 2026/7/9
Key Features
- 1Ensure reliable operation with 1NO/1NC quick-action snap contacts.
- 2Meet EN 50041 standards using a high-quality plastic enclosure.
- 3Simplify installation with a standard 4-pole M12 connector interface.
- 4Gain peace of mind backed by a full 24-month product warranty.
- 5Monitor status easily via a 360-degree visible green LED indicator.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sensor Length | 130mm | Sensor Height | 33mm |
| Sensor Width | 50mm | Number of Transfer Contacts | 0 |
| Number of Make Contacts | 1 | Number of Break Contacts | 1 |
| Rated Operating Current Ie (DC-13, 24V) | 3A | Rated Operating Current Ie (AC-15, 24V) | 3A |
| Number of Safety-Related Auxiliary Contacts | 0 | Housing Material | Plastic |
| Product Type | Single Position Limit Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | EAR99 |
| AL | N | Model Number | 3SE5242-0HR03-1AL4 |
Specifications may be subject to change without notice
