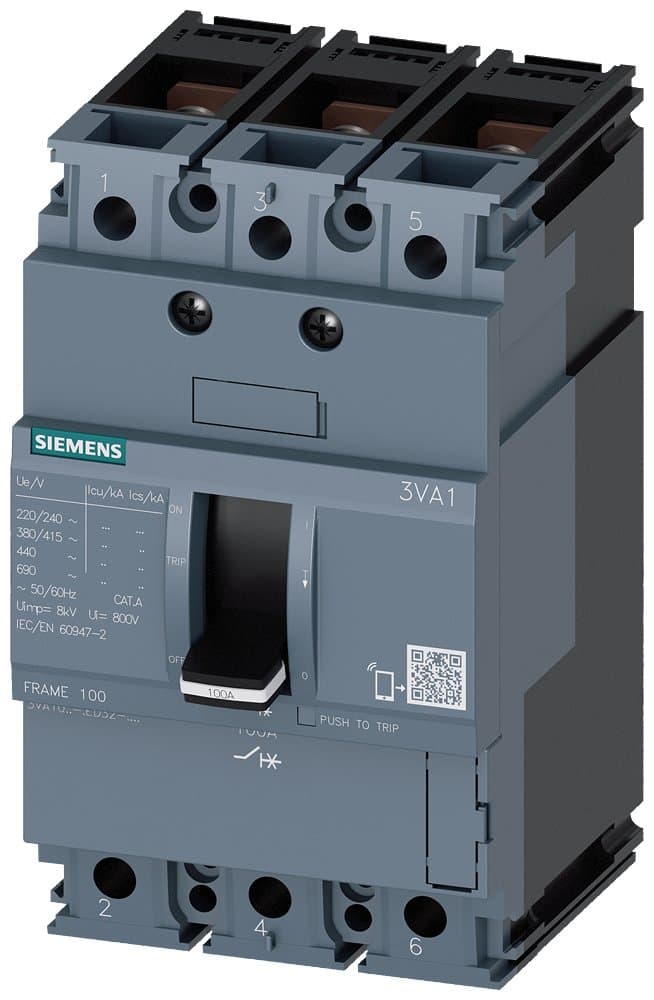

3VA1025-4ED32-0AA0
Product ID:226651
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity of 36 kA at 415V for superior fault protection. 2、Utilize the robust 3-pole IEC Frame 100 design for durable installation. 3、Benefit from integrated system protection with TM210 and FTFM technology. 4、Ensure reliable overload protection with a fixed 25A thermal setting. 5、Simplify installation with reliable screw flattop connectors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1S100 R25 TM210 F/3P; 3VA1_100 dimensions; Rated current 25A; Interrupting S:36kA; Trip unit TM210; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210 [LI fixed, line protection] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 25 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1025-4ED32-0AA0 |
Specifications may be subject to change without notice
