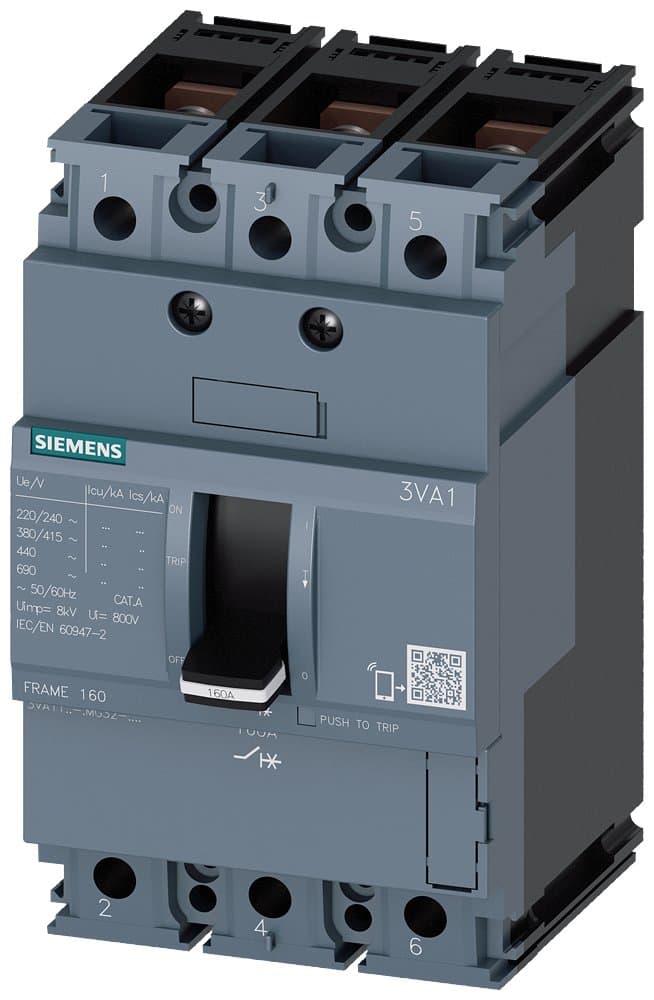

3VA1102-5MG32-0AA0
Product ID:220032
Updated: 2026/6/21
Key Features
- 1Deliver 55kA at 415V for reliable short-circuit protection.
- 2Save space with compact IEC frame 160 for easy installation.
- 3Ensure motor safety via TM110M and FM protection functions.
- 4Customize I-tripping and N-tripping settings from 32A to 0A.
- 5Withstand up to 20,000 operating cycles for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1M160 R2 TM110M F/3P; 3VA1_160 dimensions; Rated current 2A; Interrupting rating M: 55kA; Trip unit TM110M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM110M [Single Magnetic (I non-adjustable)] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
| Rated Current In(A): | 2 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3VA1102-5MG32-0AA0 |
Specifications may be subject to change without notice
