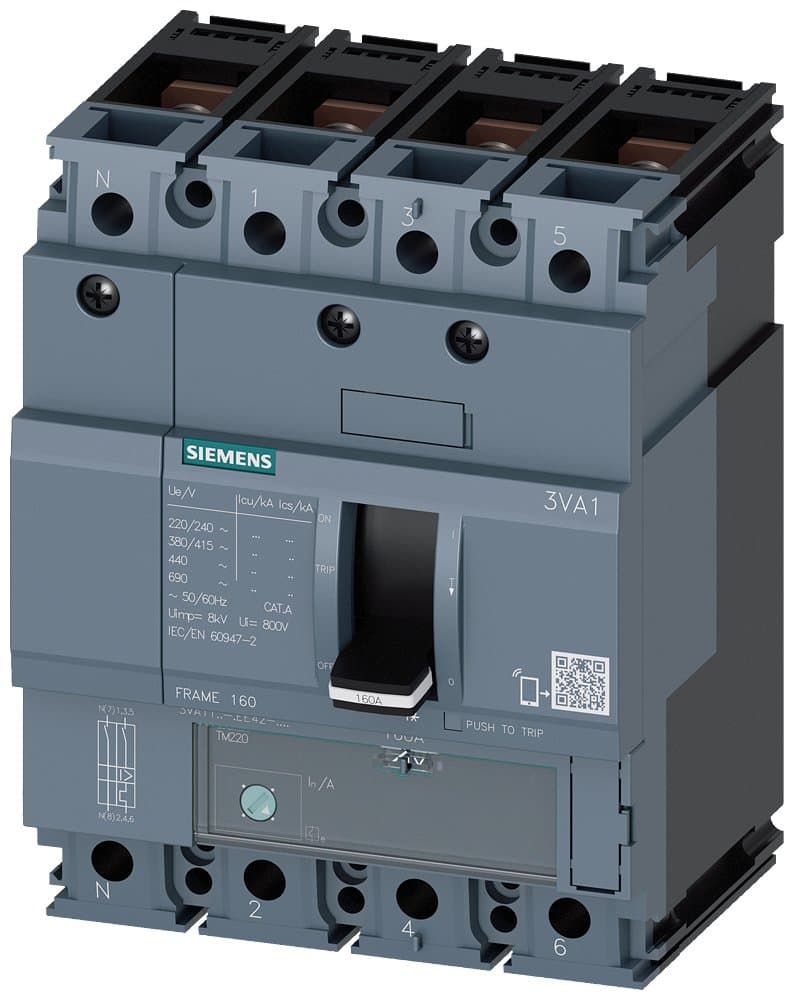

3VA1112-6EE42-0AA0
Product ID:99881
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity up to 70 kA at 415 V. 2、Ensure selective protection for enhanced safety and system efficiency. 3、Utilize a compact design with modular, easy-to-fit internal accessories. 4、Apply to AC/DC systems with no derating up to +50 °C. 5、Access integrated metering for precise power and energy measurement.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 70 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1H160 R125 TM220 F/4P; 3VA1_160 dimensions; Rated current 125A; Interrupting rating H:70kA; Trip unit TM220; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220 [L adjustable, I fixed] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 70 | Interrupting Rating: | H:70kA |
| Rated Current In(A): | 125 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1112-6EE42-0AA0 |
Specifications may be subject to change without notice
