Key Features
- 1Handle up to 160A current without overload protection.
- 2Utilize a reliable 4-pole configuration for diverse panel setups.
- 3Comply with international standards via IEC Frame 160 design.
- 4Meet strict safety with the SD100 performance rating.
- 5Secure installation using the included nut keeper kit.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Voltage(V): | 690 | Number of Poles: | 4P |
| Description | 3VA1B160 R160 SD100 F/4P; 3VA1_160 dimensions; Rated current 160A; Breaking B: 16kA; Trip unit SD100; | Mounting Method: | F: Fixed |
| Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
| Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |

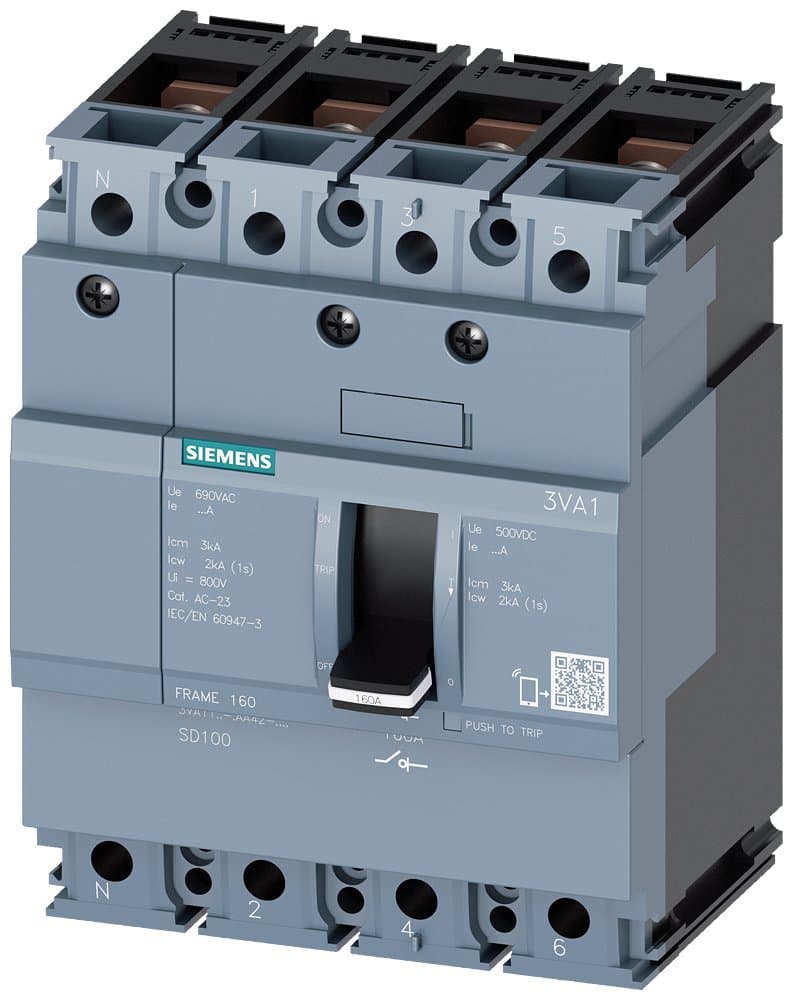

| Model Number | 3VA1116-1AA42-0AA0 |
Specifications may be subject to change without notice
