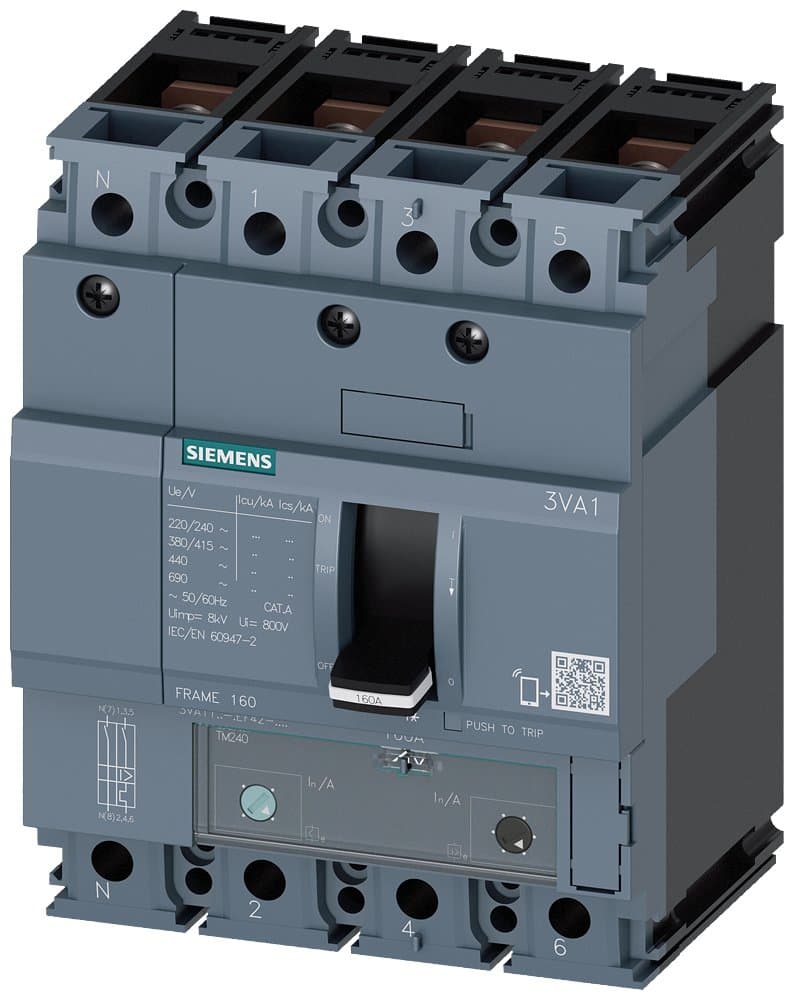

3VA1116-6EF42-0AA0
Product ID:98981
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity up to 70 kA at 415 V. 2、Ensure line protection with TM240 and ATAM compliance. 3、Simplify installation with modular, easy-to-fit internal accessories. 4、Save panel space using a compact 70 mm mounting depth design. 5、Apply in AC/DC systems with no derating up to +50 °C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 70 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1H160 R160 TM240 F/4P; 3VA1_160 dimensions; Rated current 160A; Interrupting rating H:70kA; Trip unit TM240; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240【Thermal Magnetic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 70 | Interrupting Rating: | H:70kA |
| Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1116-6EF42-0AA0 |
Specifications may be subject to change without notice
