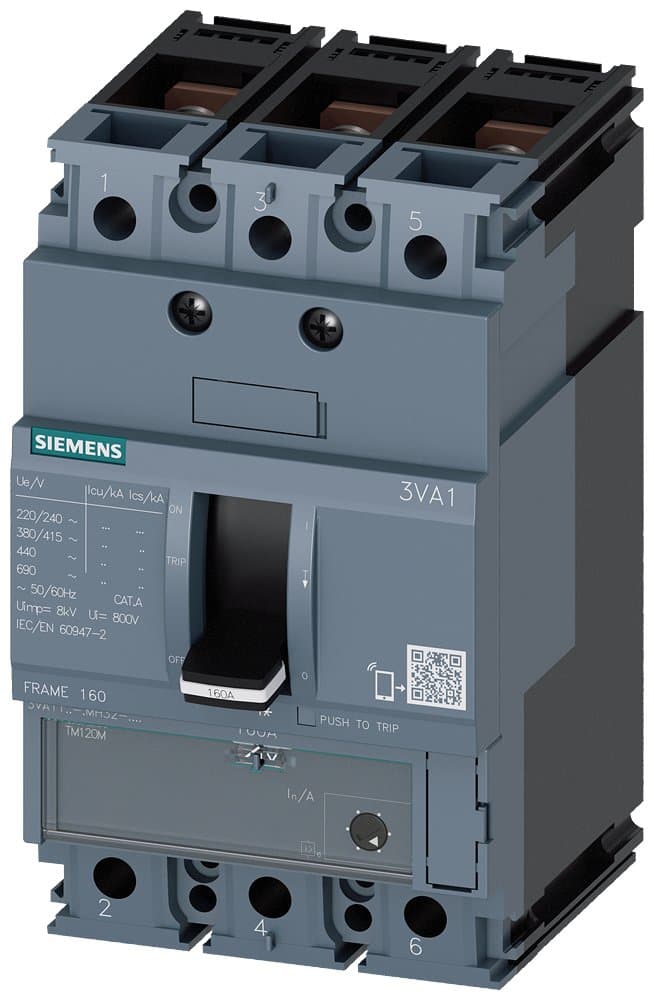

3VA1120-5MH32-0AA0
Product ID:102303
Updated: 2026/4/4
Key Features
- 1Achieve high breaking capacity of 55 kA at 415 V. 2、Save space with a compact and efficient design. 3、Protect motor starters using TM120M and AM features. 4、Ensure robust performance with a three-pole configuration. 5、Utilize a 20 A current rating without overload protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Int interrupting Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1M160 R20 TM120M F/3P; 3VA1_160 dimensions; Rated current 20A; Interrupting M: 55kA; Trip unit TM120M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM120M [Single Magnetic (I adjustable)] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
| Rated Current In(A): | 20 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1120-5MH32-0AA0 |
Specifications may be subject to change without notice
