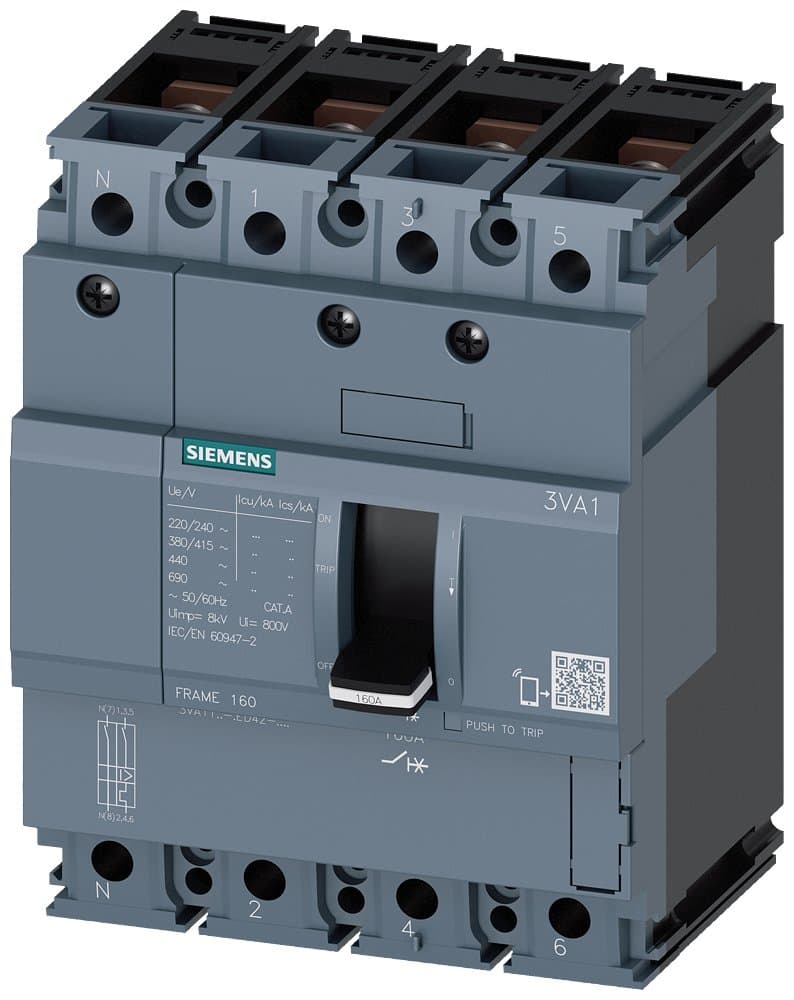

3VA1125-3ED42-0AA0
Product ID:226910
Updated: 2026/7/8
Key Features
- 1Achieve high breaking capacity of 25 kA at 415 V for robust system protection.
- 2Utilize a compact design with only 70 mm mounting depth to save panel space.
- 3Rely on thermal-magnetic trip units for reliable overload and short-circuit protection.
- 4Simplify installation with modular, easy-to-fit internal accessories for diverse functions.
- 5Enable efficient system monitoring through integrated data collection and communication.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 25 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1N160 R25 TM210 F/4P; 3VA1_160 dimensions; Rated current 25A; Interrupting rating N:25kA; Trip unit TM210; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210【LI fixed, line protection】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 25 | Interrupting Rating: | N:25kA |
| Rated Current In(A): | 25 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1125-3ED42-0AA0 |
Specifications may be subject to change without notice
