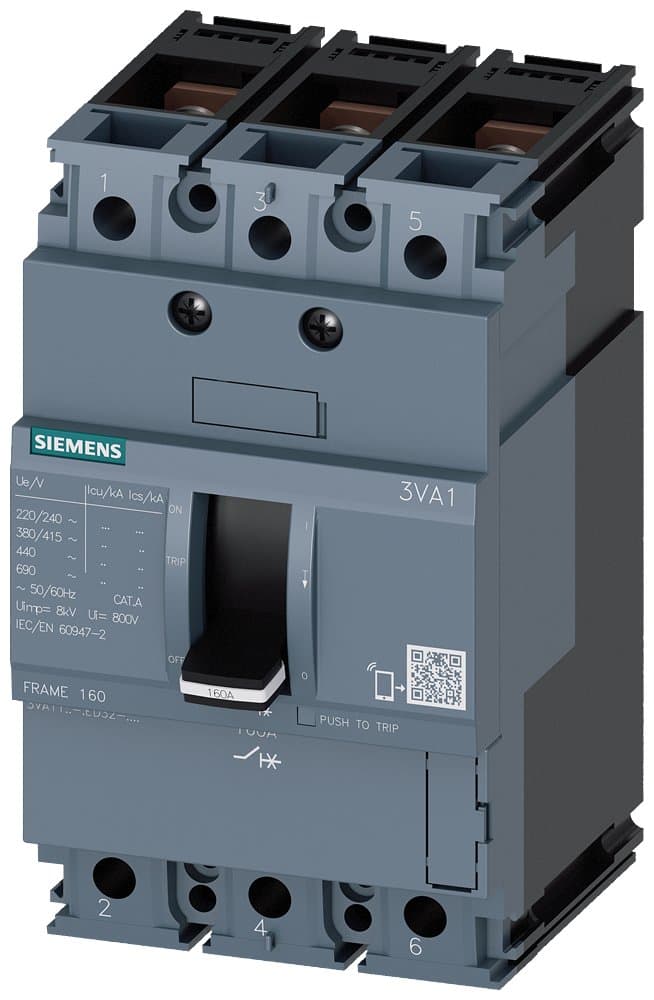

3VA1163-6ED32-0AA0
Product ID:98639
Updated: 2026/7/2
Key Features
- 1Deliver high breaking capacity up to 70 kA at 415 V.
- 2Ensure reliable protection with thermal-magnetic trip units.
- 3Offer flexible fixed, plug-in, and draw-out installation.
- 4Save panel space with a compact 70 mm depth.
- 5Enable smart energy management via data communication.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 70 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1H160 R63 TM210 F/3P; 3VA1_160 dimensions; Rated current 63A; Interrupting rating H:70kA; Trip unit TM210; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210【LI fixed, line protection】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 70 | Interrupting Rating: | H:70kA |
| Rated Current In(A): | 63 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1163-6ED32-0AA0 |
Specifications may be subject to change without notice
