Key Features
- 1Deliver reliable short-circuit protection with 25 kA breaking capacity.
- 2Integrate advanced line protection via TM210 and FTFM trip units.
- 3Manage currents efficiently with overload protection up to 80A.
- 4Enable seamless system integration through internal auxiliary switches.
- 5Simplify installation with a compact design and standardized accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Int interrupting Capacity Ics(kA):@400V or 415V | 5 | Rated Voltage(V): | 415 |
| Number of Poles: | 1P | Description | 3VA1N160 R80 TM210 F/1P; 3VA1_160 Dimensions; Rated Current 80A; Interrupting Rating N: 25kA; Trip Unit TM210; F; 1P |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required not in the list, reset and select trip unit first) | TM210 [LI fixed, Line Protection] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 5 | Interrupting Rating: | N: 5kA [25kA @ 240V] |
| Rated Current In(A): | 80 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |

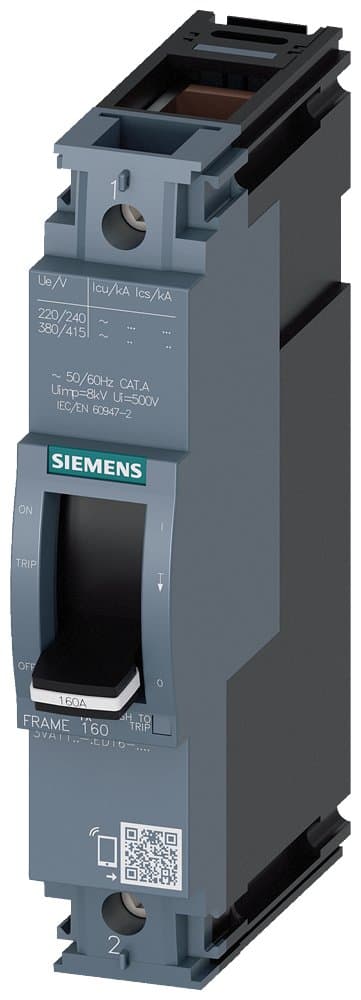

| Model Number | 3VA1180-3ED16-0AA0 |
Specifications may be subject to change without notice
