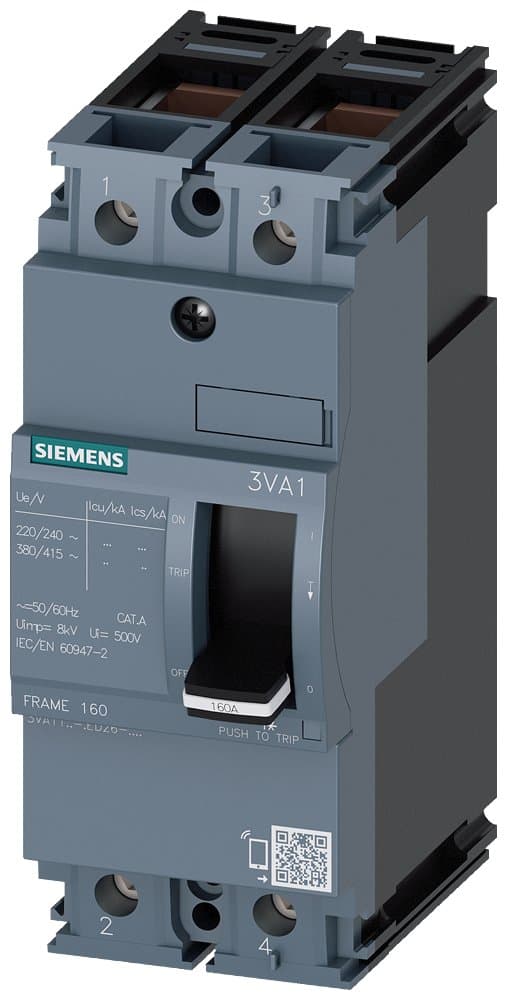

3VA1196-3ED26-0AA0
Product ID:98530
Updated: 2026/7/2
Key Features
- 1Ensure reliable protection with a high breaking capacity of 25 kA @ 415 V.
- 2Provide precise 2-pole line protection using TM210 and FTFM technology.
- 3Manage current accurately with fixed In=16A overload protection.
- 4Integrate easily into diverse systems thanks to the IEC Frame 160 design.
- 5Access quick delivery options from authorized Siemens suppliers.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Interrupting Capacity Ics(kA):@400V or 415V | 25 | Rated Voltage(V): | 415 |
| Number of Poles: | 2P | Description | 3VA1N160 R16 TM210 F/2P; 3VA1_160 dimensions; Rated current 16A; Interrupting rating N:25kA; Trip unit TM210; F; 2P |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM210【LI fixed, line protection】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 25 | Interrupting Rating: | N:25kA |
| Rated Current In(A): | 16 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1196-3ED26-0AA0 |
Specifications may be subject to change without notice
