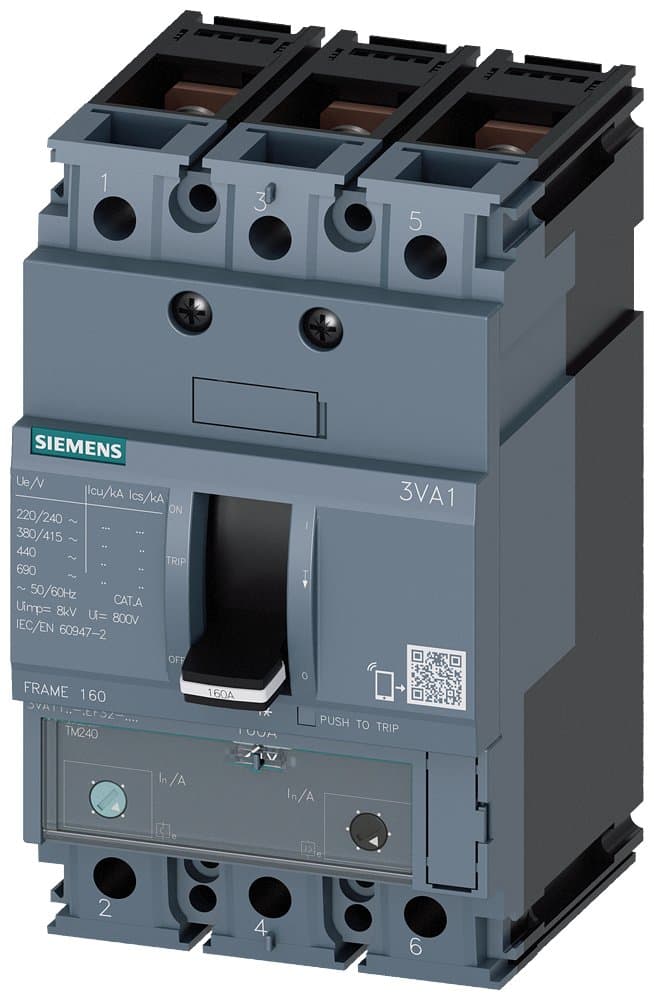

3VA1196-5EF32-0AA0
Product ID:224843
Updated: 2026/4/3
Key Features
- 1Provide effective line protection against overloads and short circuits. 2、Deliver high breaking capacity of 55 kA at 415 V. 3、Feature a compact design ideal for space-constrained industrial panels. 4、Enable versatile fixed or plug-in installation for setup flexibility. 5、Integrate thermo-magnetic trip unit and modular accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Interrupting Capacity Ics (kA): @400V or 415V | 55 | Rated Voltage (V): | 690 |
| Number of Poles: | 3P | Description | 3VA1M160 R16 TM240 F/3P; 3VA1_160 dimensions; Rated Current 16A; Interrupting Rating M: 55 kA; Trip Unit TM240; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240 [Thermal Magnetic Type LI] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 55 | Interrupting Rating: | M: 55 kA |
| Rated Current In (A): | 16 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1196-5EF32-0AA0 |
Specifications may be subject to change without notice
