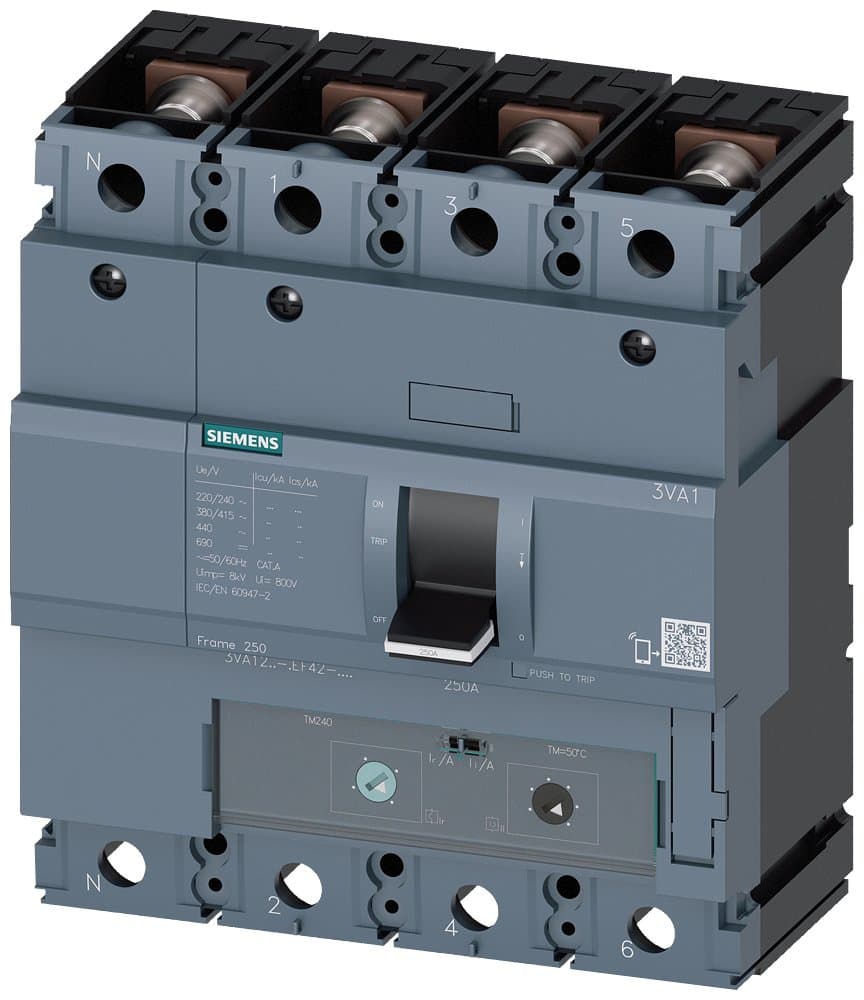

3VA1216-5EF42-0AA0
Product ID:220897
Updated: 2026/4/4
Key Features
- 1Deliver reliable protection against overloads and short circuits for safe power distribution. 2、Integrate flexible internal accessories to adapt to specific application requirements easily. 3、Save panel space with a compact 70 mm mounting depth and 45 mm cover size. 4、Provide cost-efficient protection for three-phase AC networks and DC currents. 5、Simplify installation using adapters for standard rails and compatible RCD devices.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1M250 R160 TM240 F/4P; 3VA1_250 dimensions; Rated current 160A; Interrupting rating M:55kA; Trip unit TM240; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240【Thermal Magnetic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 160 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1216-5EF42-0AA0 |
Specifications may be subject to change without notice
