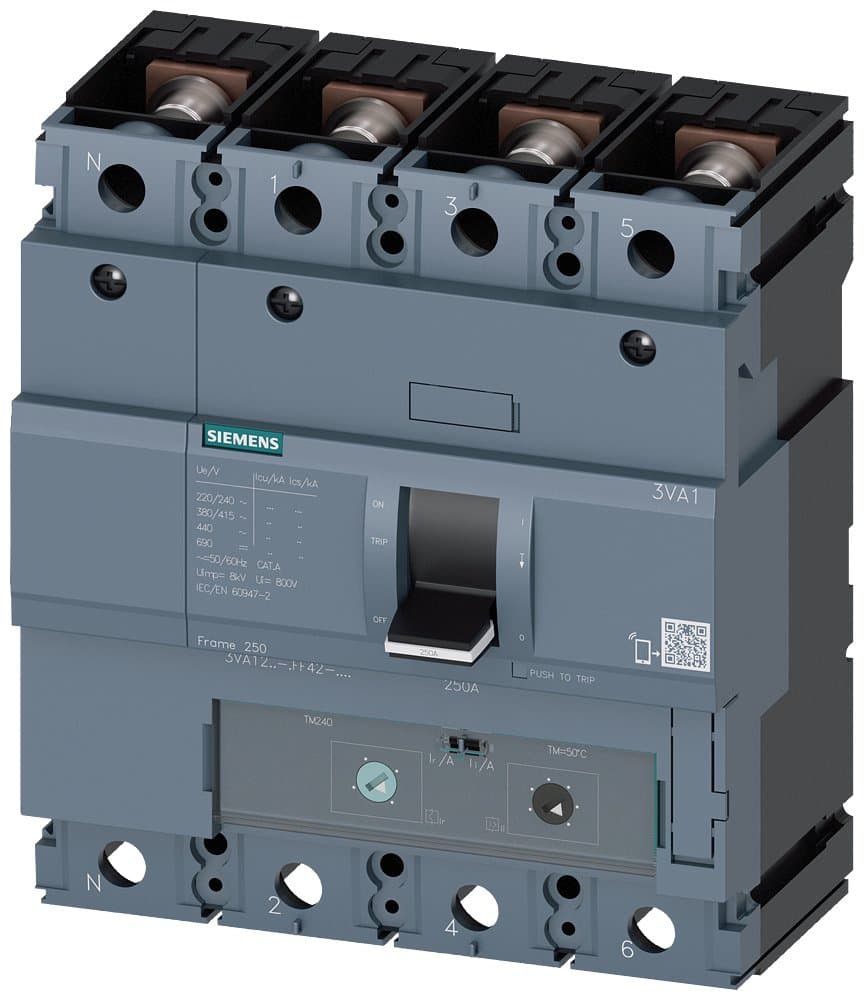

3VA1220-4GF42-0AA0
Product ID:129620
Updated: 2026/4/4
Key Features
- 1Ensure reliable operation under heavy loads with 36 kA @ 415 V interrupting capacity. 2、Benefit from comprehensive electrical safety via TM240 and ATAM protection systems. 3、Achieve precise overload protection with adjustable Ir settings from 140A to 200A. 4、Secure neutral conductor management with a 100% nut keeper kit. 5、Meet environmental regulations with RoHS compliance since 01.06.2012.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1S250 R200 TM240N F/4P; 3VA1_250 dimensions; Rated current 200A; Interrupting rating S:36kA; Trip unit TM240N; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240N【Thermal Magnetic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 200 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1220-4GF42-0AA0 |
Specifications may be subject to change without notice
