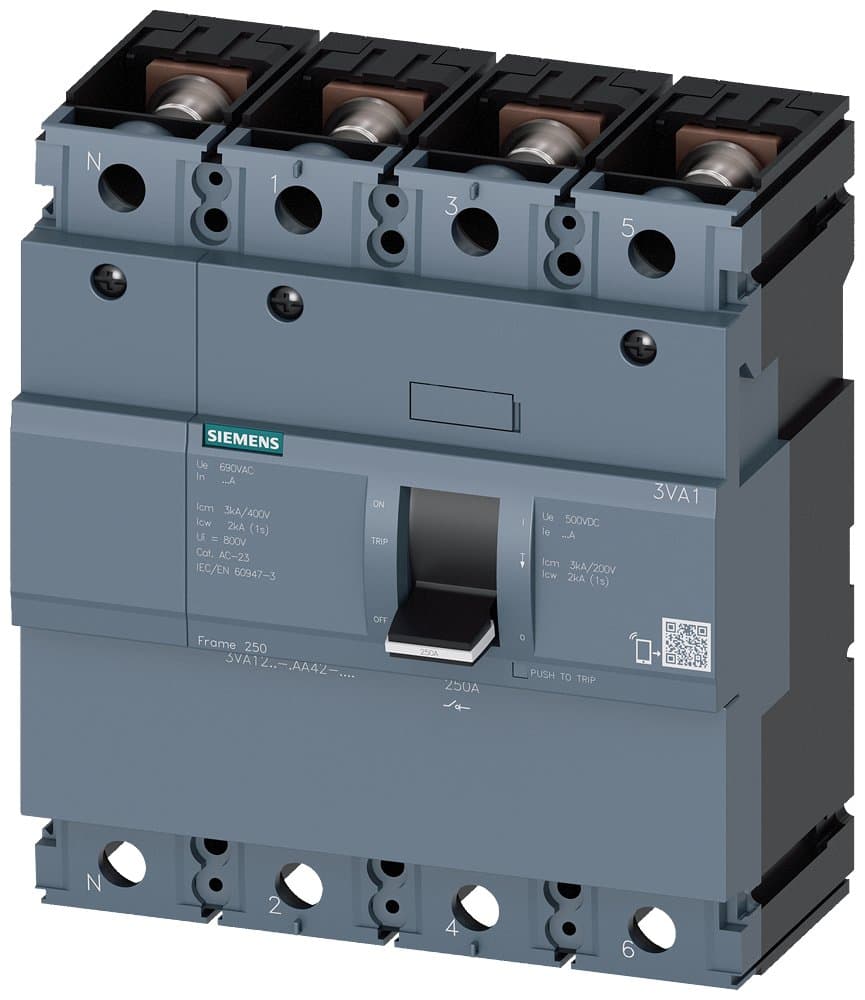

3VA1225-1AA42-0AA0
Product ID:152399
Updated: 2026/4/16
Key Features
- 1Meet IEC 60947-3 safety standards for reliable disconnection. 2、Handle high currents safely with a 250A, 4-pole configuration. 3、Ensure operational safety with a reliable isolation mechanism. 4、Protect against dust ingress with an IP40 enclosure rating. 5、Operate effectively across a wide -25°C to 70°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Voltage(V): | 690 | Number of Poles: | 4P |
| Description | 3VA1B250 R250 SD100 F/4P; 3VA1_250 dimensions; Rated current 250A; Breaking B: 16kA; Trip unit SD100; | Mounting Method: | F: Fixed |
| Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1225-1AA42-0AA0 |
Specifications may be subject to change without notice
