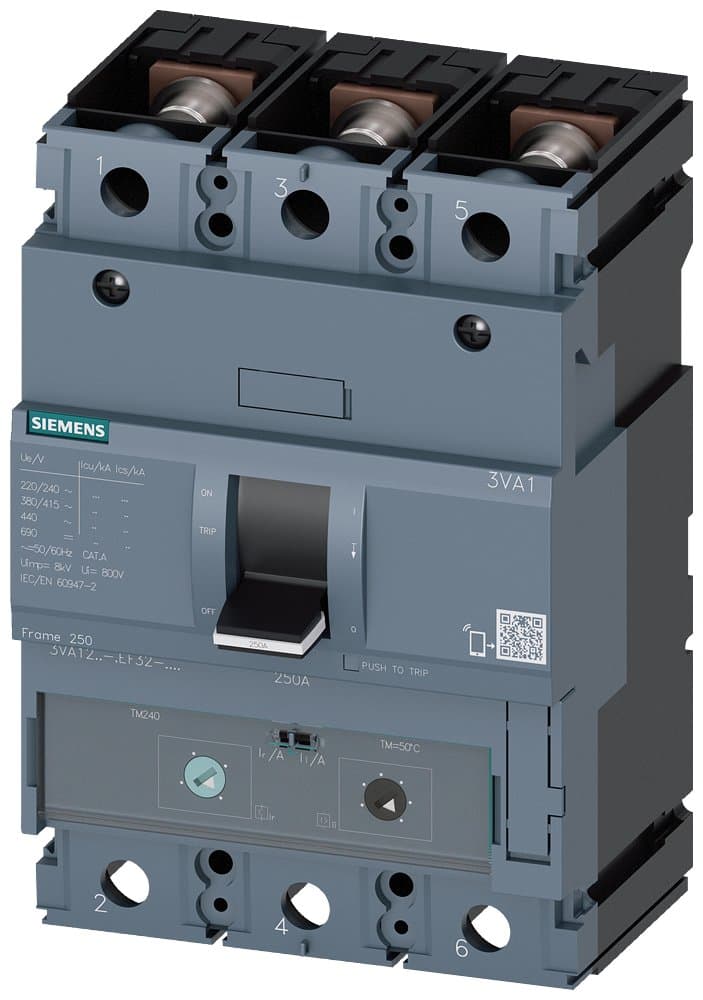

3VA1225-4EF32-0AA0
Product ID:103245
Updated: 2026/4/4
Key Features
- 1Protect against overloads and short circuits with a reliable thermal-magnetic trip unit. 2、Ensure robust electrical safety with a high 36kA breaking capacity at 415V. 3、Save valuable panel space using a compact and modular design. 4、Safeguard electrical motors effectively as a starter circuit breaker. 5、Benefit from comprehensive line protection features including TM240 and ATAM.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1S250 R250 TM240 F/3P; 3VA1_250 dimensions; Rated Current 250A; Interrupting S:36kA; Trip Unit TM240; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM240【Thermal Magnetic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1225-4EF32-0AA0 |
Specifications may be subject to change without notice
