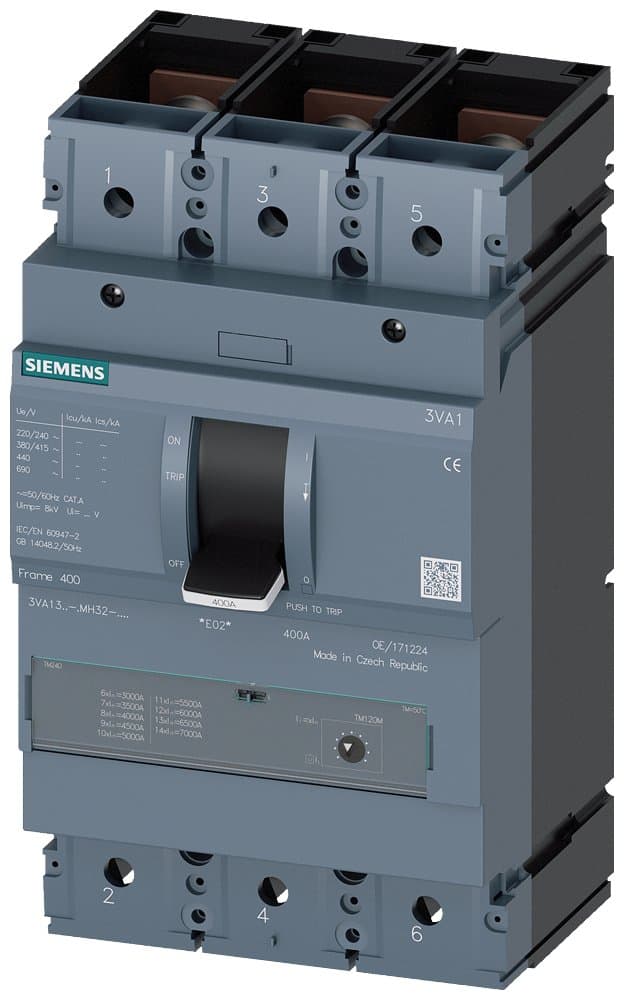

3VA1325-7MH32-0AA0
Product ID:215181
Updated: 2026/6/27
Key Features
- 1Achieve high breaking capacity with Icu=110 kA @ 415 V.
- 2Save space using a compact and efficient design.
- 3Protect motors with advanced TM120M and AM technology.
- 4Ensure reliable operation without overload protection.
- 5Deploy in high-performance industrial safety applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1C400 R250 TM120M F/3P; 3VA1_400 dimensions; Rated current 250A; Interrupting rating C:110kA; Trip unit TM120M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM120M【Single Magnetic (I adjustable)】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 250 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1325-7MH32-0AA0 |
Specifications may be subject to change without notice
