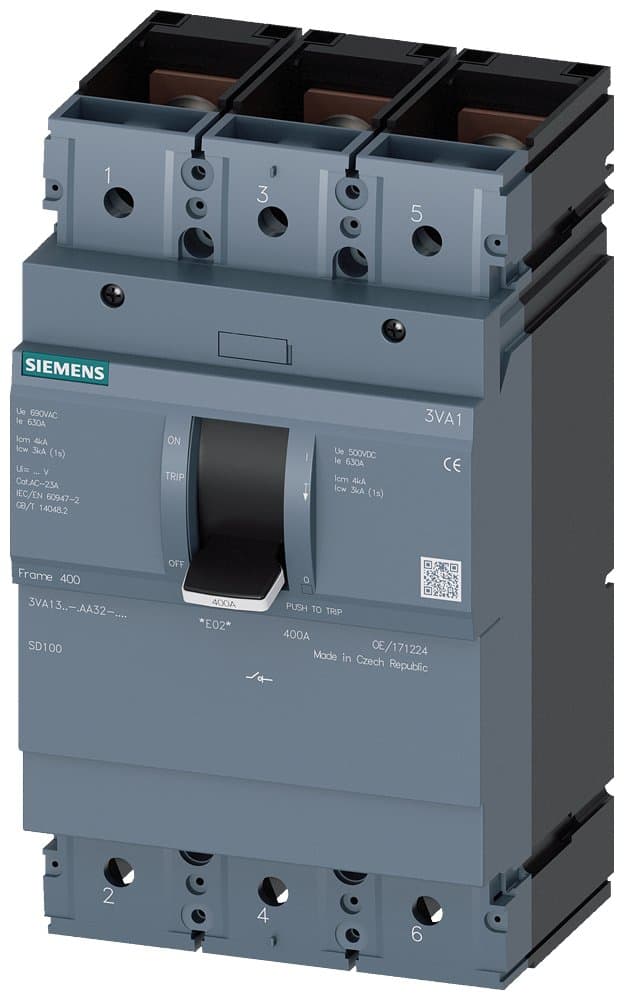

3VA1340-1AA32-0AA0
Product ID:105273
Updated: 2026/4/5
Key Features
- 1Handle high currents up to 400A for demanding applications. 2、Ensure reliable operation with IP40 environmental protection. 3、Operate in a wide temperature range from -25°C to 70°C. 4、Benefit from optimal conductivity with silver-plated connections. 5、Enhance safety using the proven MCCB design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Voltage(V): | 690 | Number of Poles: | 3P |
| Description | 3VA1B400 R400 SD100 F/3P; 3VA1_400 dimensions; Rated current 400A; Breaking B: 16kA; Trip unit SD100; | Mounting Method: | F: Fixed |
| Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
| Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1340-1AA32-0AA0 |
Specifications may be subject to change without notice
