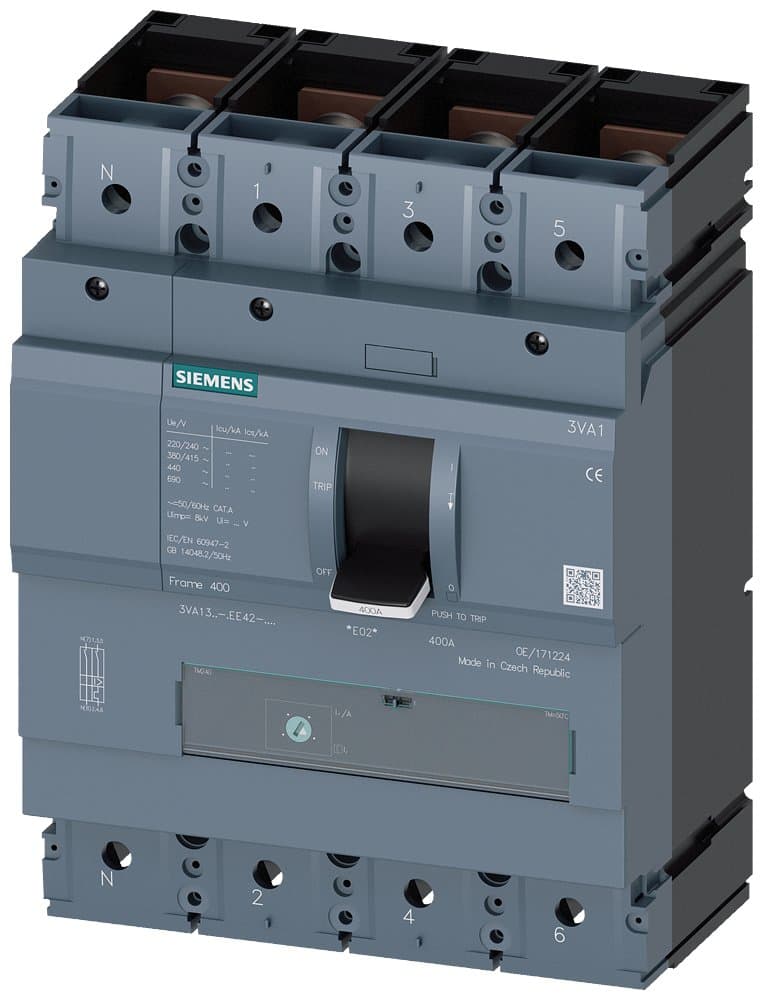

3VA1340-4EE42-0AA0
Product ID:184303
Updated: 2026/7/7
Key Features
- 1Achieve high breaking capacity of 36 kA at 415 V for superior protection.
- 2Utilize the robust 3VA1 IEC Frame 400 design for reliable, long-term operation.
- 3Benefit from comprehensive line protection with TM220 and ATFM technology.
- 4Configure overload protection up to 400 A and short-circuit protection up to 10 x In.
- 5Secure conductor connections with the included 100% nut keeper kit.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1S400 R400 TM220 F/4P; 3VA1_400 dimensions; Rated current 400A; Interrupting S:36kA; Trip unit TM220; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM220【L adjustable, I fixed】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1340-4EE42-0AA0 |
Specifications may be subject to change without notice
