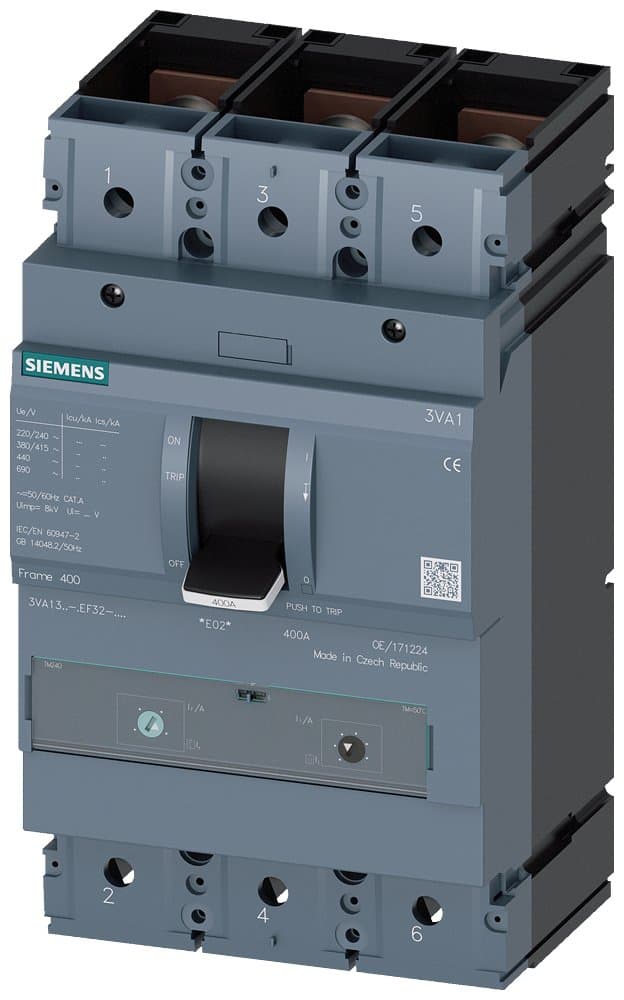

3VA1340-5EF32-0AA0
Product ID:217132
Updated: 2026/4/5
Key Features
- 1Ensure reliable shutdown with a high 55 kA breaking capacity at 415V. 2、Provide comprehensive line protection using advanced TM240 and ATAM technology. 3、Deliver precise overload protection up to 400A with a thermal-magnetic trip unit. 4、Support medium-capacity applications with the robust IEC Frame 400 design. 5、Safeguard plants, starters, and motors across versatile industrial settings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1M400 R400 TM240 F/3P; 3VA1_400 dimensions; Rated current 400A; Interrupting rating M:55kA; Trip unit TM240; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240【Thermal Magnetic LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1340-5EF32-0AA0 |
Specifications may be subject to change without notice
