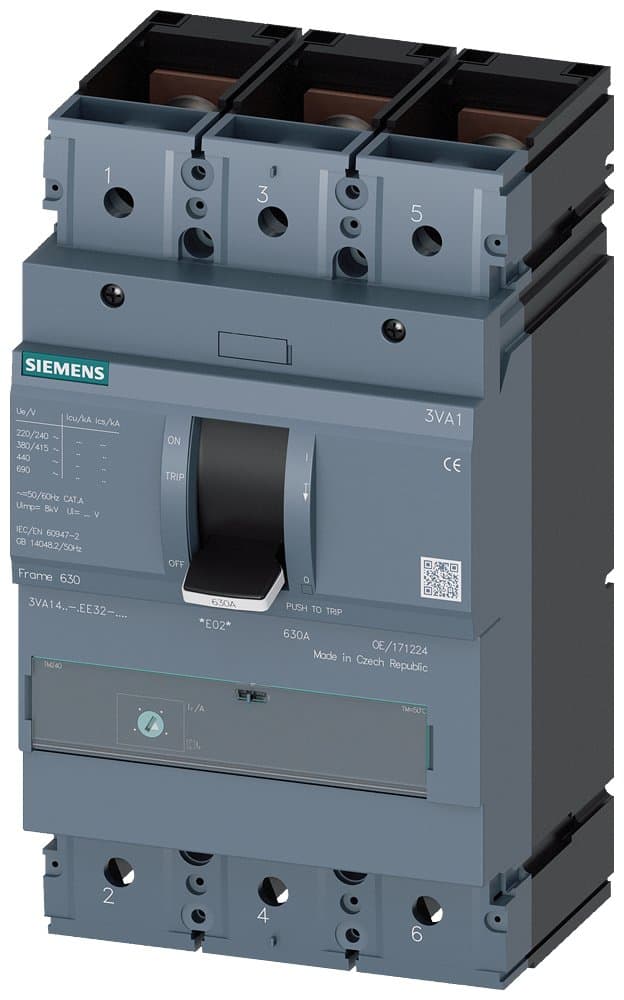

3VA1450-6EE32-0AA0
Product ID:128352
Updated: 2026/7/8
Key Features
- 1Deliver robust 70 kA short-circuit protection at 415V.
- 2Provide comprehensive overload protection up to 500A.
- 3Ensure reliable operation in demanding industrial environments.
- 4Safeguard motor starters and various applications.
- 5Meet global IEC 60947 standards for certified use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 70 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA1H630 R500 TM220 F/3P; 3VA1_630 dimensions; Rated Current 500A; Interrupting H:70kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM220【L adjustable, I fixed】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 70 | Interrupting Rating: | H:70kA |
| Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1450-6EE32-0AA0 |
Specifications may be subject to change without notice
