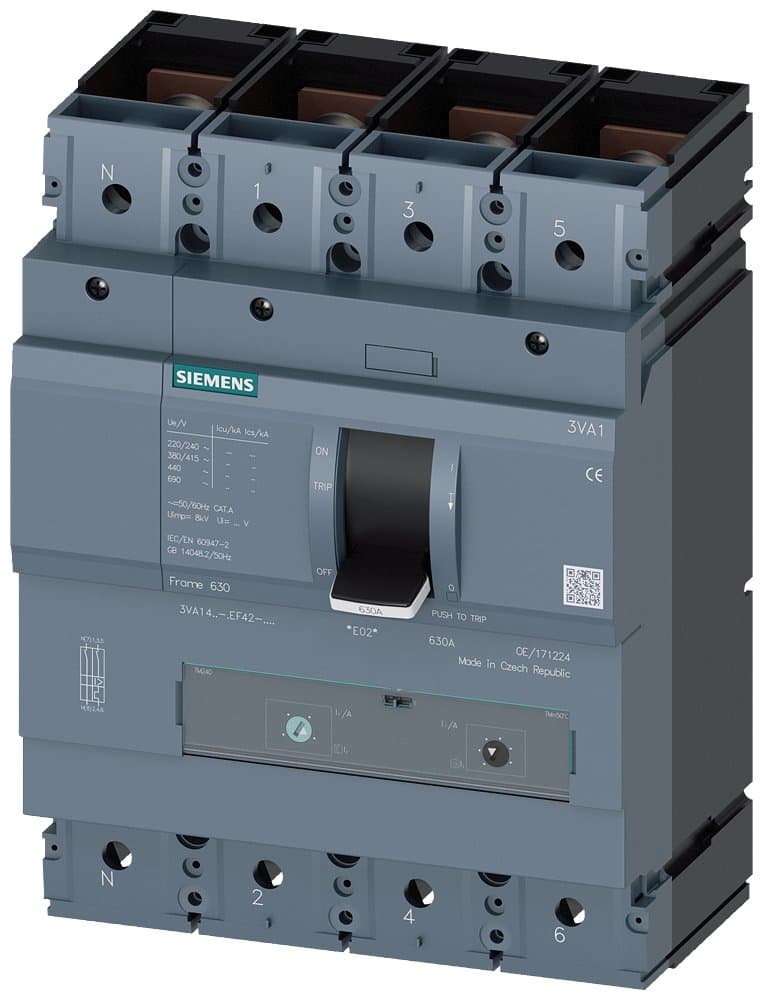

3VA1463-4EF42-0AA0
Product ID:223937
Updated: 2026/6/16
Key Features
- 1Achieve high breaking capacity of 36 kA at 415 V for robust power management.
- 2Enhance safety with integrated line protection via TM240 and ATAM.
- 3Ensure reliable operation with adjustable overload protection up to 630 A.
- 4Benefit from free delivery available in multiple service regions.
- 5Access extended warranty and repair services directly from Siemens.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1S630 R630 TM240 F/4P; 3VA1_630 dimensions; Rated Current 630A; Interrupting S:36kA; Trip Unit TM240; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM240【Thermal Magnetic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 630 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1463-4EF42-0AA0 |
Specifications may be subject to change without notice
