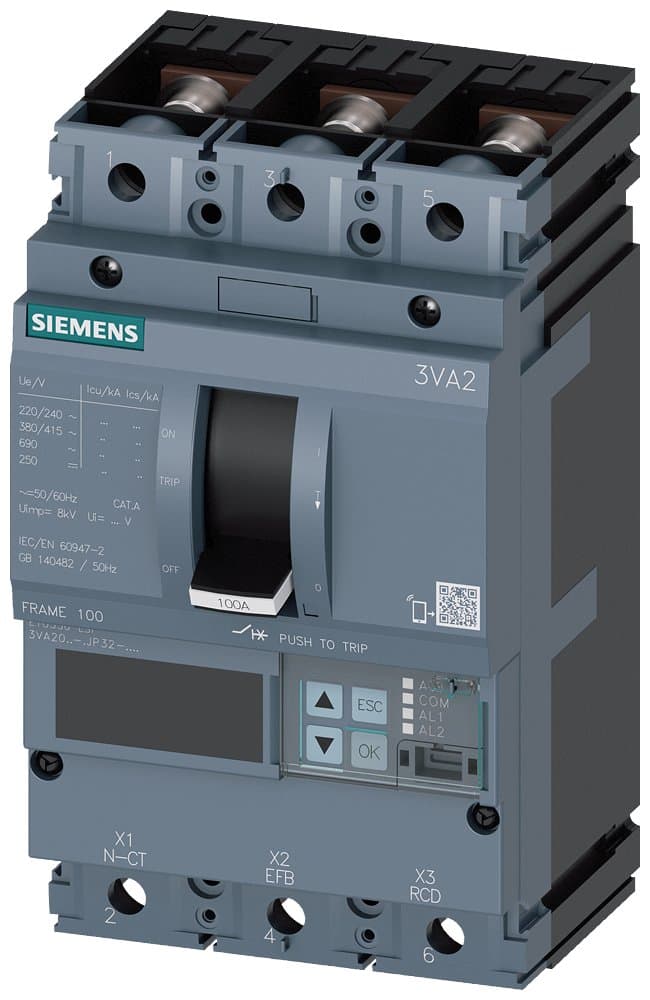

3VA2010-6JP32-0AA0
Product ID:129048
Updated: 2026/4/3
Key Features
- 1Support every process step with modular and variable systems. 2、Provide overload and short-circuit protection via thermal-magnetic trip units. 3、Enable easy installation with a 70 mm mounting depth. 4、Access diverse functions with a wide range of internal accessories. 5、Ensure easy operation under poor lighting with color-coded controls.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H100 R100 ETU550 F/3P; 3VA2_100 dimensions; Rated current 100A; Interrupting rating H:85kA; Trip unit ETU550; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 100 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2010-6JP32-0AA0 |
Specifications may be subject to change without notice
