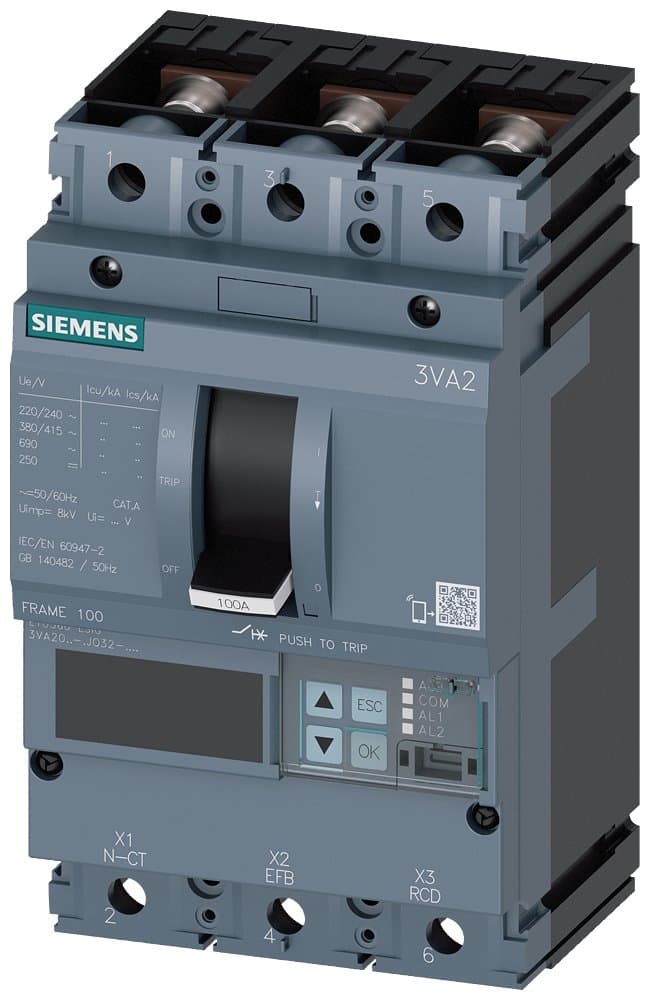

3VA2010-7JQ32-0AA0
Product ID:103523
Updated: 2026/7/3
Key Features
- 1Deliver high breaking capacity up to 110 kA at 415 V.
- 2Ensure selective protection with a 1:2.5 operational current interval.
- 3Integrate metering for precise energy data collection.
- 4Utilize compact fixed, plug-in, or draw-out mounting.
- 5Apply to AC and DC systems with no derating to +50°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics (kA): @400V or 415V | 110 | Rated Voltage (V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C100 R100 ETU560 F/3P; 3VA2_100 dimensions; Rated current 100A; Interrupting rating C:110kA; Trip unit ETU560; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560 [Electronic LSIG + LCD] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In (A): | 100 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2010-7JQ32-0AA0 |
Specifications may be subject to change without notice
