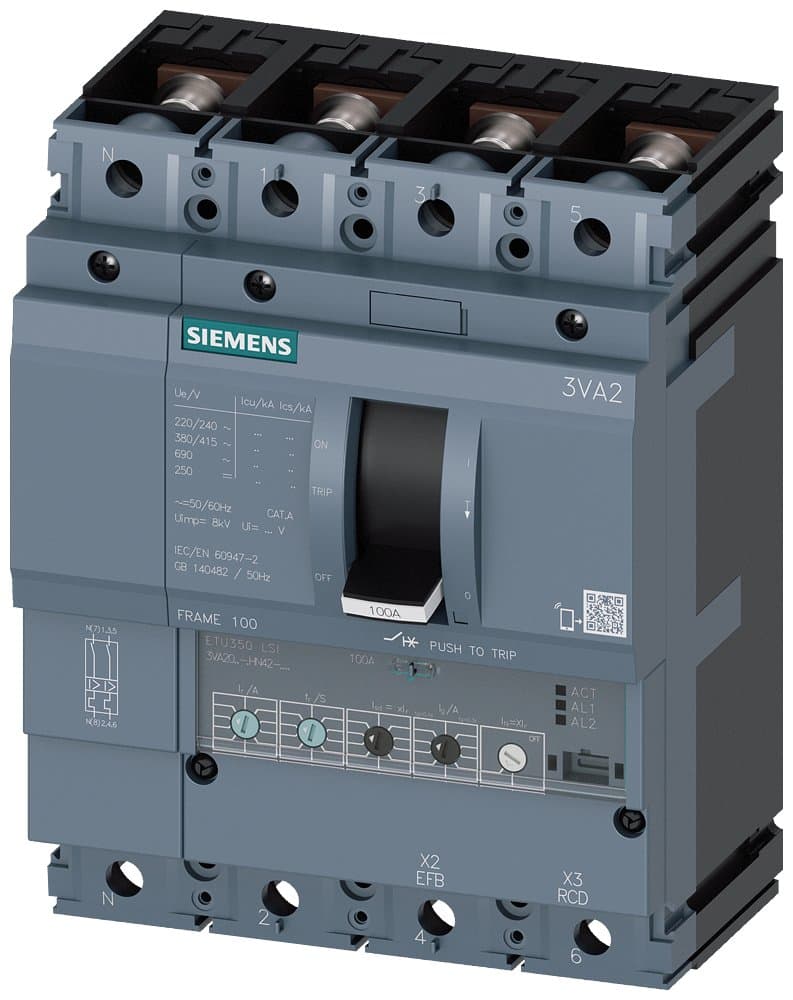

3VA2025-5HN42-0AA0
Product ID:104100
Updated: 2026/7/3
Key Features
- 1Achieve reliable operation with a high breaking capacity of 55 kA at 415 V.
- 2Ensure precise protection using the electronic trip unit (ETU350).
- 3Provide efficient line and neutral protection with a 4-pole design.
- 4Benefit from robust construction within a compact IEC Frame 100.
- 5Safeguard various industrial applications with 25 A overload protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics (kA): @400V or 415V | 55 | Rated Voltage (V): | 690 |
| Number of Poles: | 4P | Description | 3VA2M100 R25 ETU350 F/4P; 3VA2_100 dimensions; Rated current 25A; Interrupting rating M: 55 kA; Trip unit ETU350; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU350 [Electronic LSI] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 55 | Interrupting Rating: | M: 55 kA |
| Rated Current In (A): | 25 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2025-5HN42-0AA0 |
Specifications may be subject to change without notice
