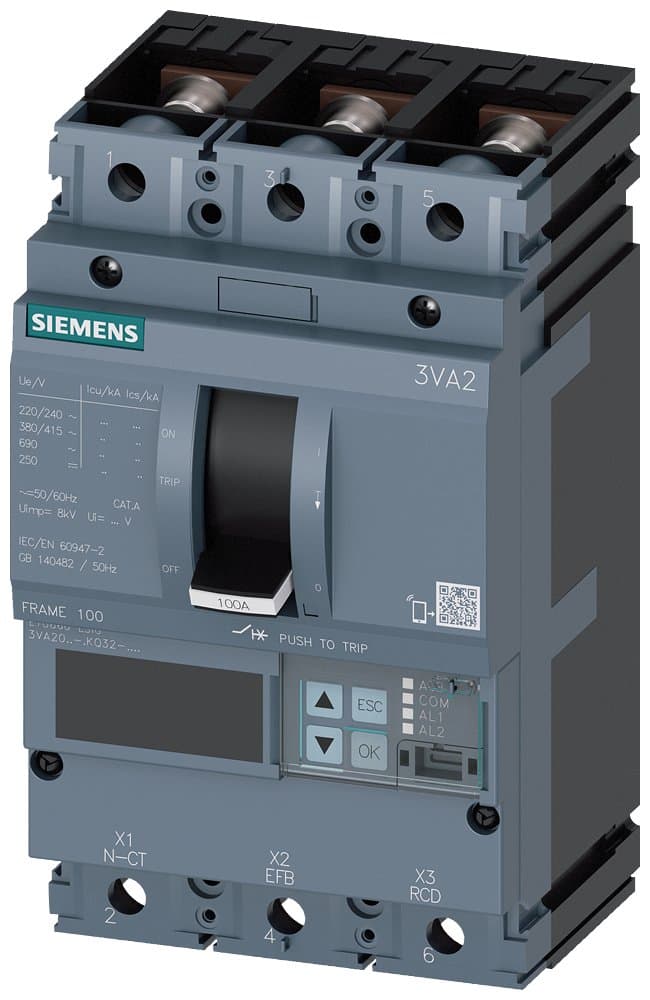

3VA2025-5KQ32-0AA0
Product ID:128903
Updated: 2026/7/7
Key Features
- 1Ensure safety with a high 55 kA breaking capacity at 415V.
- 2Adjust overload protection from 10A to 25A for precise application matching.
- 3Integrate comprehensive LSIG line protection via the ETU860 trip unit.
- 4Save panel space with the compact and standardized IEC Frame 100 design.
- 5Simplify procurement with available free delivery and fast shipping options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M100 R25 ETU860 F/3P; 3VA2_100 dimensions; Rated current 25A; Interrupting capacity M:55kA; Trip unit ETU860; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860 [Electronic LSIG+LCD+Mea] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 25 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2025-5KQ32-0AA0 |
Specifications may be subject to change without notice
