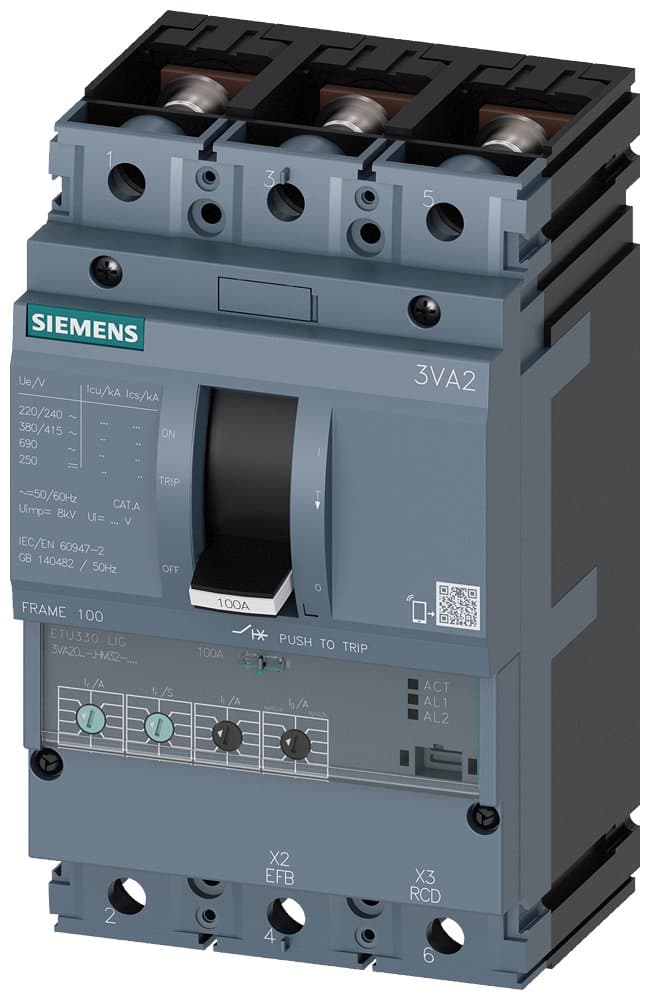

3VA2025-6HM32-0AA0
Product ID:216753
Updated: 2026/6/25
Key Features
- 1Ensure reliable line protection with 85 kA breaking capacity at 415V.
- 2Protect three-phase systems with precise 25A overload settings.
- 3Utilize the advanced microprocessor-based ETU330 trip unit.
- 4Meet international safety standards via robust IEC Frame 100 design.
- 5Achieve precise earth fault protection with adjustable Ig settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H100 R25 ETU330 F/3P; 3VA2_100 dimensions; Rated current 25A; Interrupting rating H:85kA; Trip unit ETU330; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select the trip unit first) | ETU330 [Electronic LIG] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 25 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2025-6HM32-0AA0 |
Specifications may be subject to change without notice
