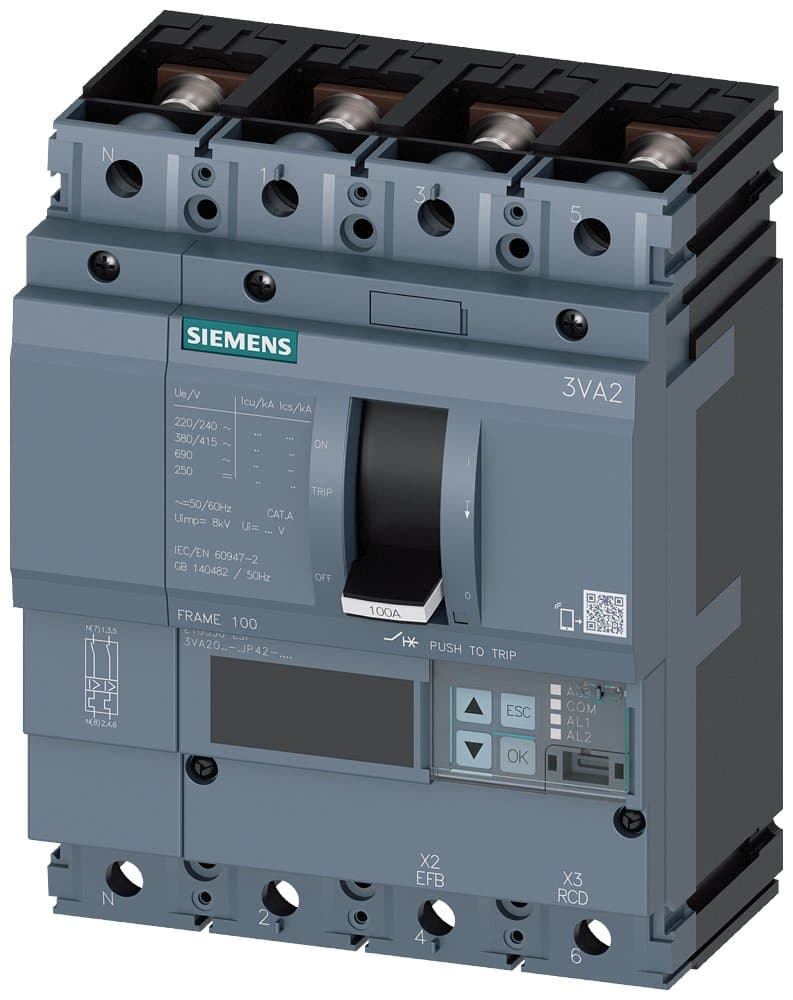

3VA2025-7JP42-0AA0
Product ID:225640
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity up to 110 kA for superior short-circuit protection. 2、Install easily with a compact design featuring a 70 mm mounting depth. 3、Expand functionality with modular and easy-to-fit internal accessories. 4、Ensure reliable overload and short-circuit protection with integrated thermal-magnetic trip units. 5、Meet global safety requirements with IEC 60947-2 compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics (kA): @400V or 415V | 110 | Rated Voltage (V): | 690 |
| Number of Poles: | 4P | Description | 3VA2C100 R25 ETU550 F/4P; 3VA2_100 dimensions; Rated current 25A; Interrupting rating C:110kA; Trip unit ETU550; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In (A): | 25 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2025-7JP42-0AA0 |
Specifications may be subject to change without notice
