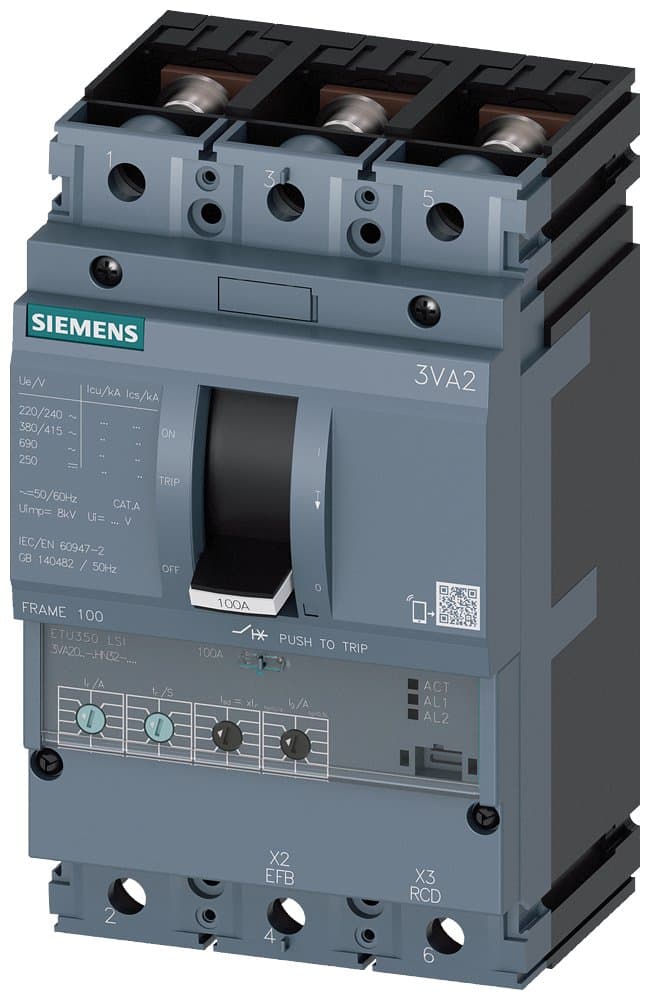

3VA2063-6HN32-0AA0
Product ID:221468
Updated: 2026/6/19
Key Features
- 1Achieve reliable line protection with a high breaking capacity of 85 kA at 415 V.
- 2Ensure safety and efficiency with IEC Frame 100 international standard compliance.
- 3Benefit from added safety via 63A adjustable overload protection.
- 4Simplify installation using the compact design measuring 4.1 x 7.1 x 4.2 inches.
- 5Enable flexible setup with versatile lug terminal and nut keeper connectivity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics (kA): @400V or 415V | 85 | Rated Voltage (V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H100 R63 ETU350 F/3P; 3VA2_100 dimensions; Rated current 63A; Interrupting rating H:85kA; Trip unit ETU350; |
| Mounting Method: | F: Fixed | Trip Unit: (If not in the list, click reset, then select the trip unit) | ETU350 [Electronic LSI] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In (A): | 63 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2063-6HN32-0AA0 |
Specifications may be subject to change without notice
