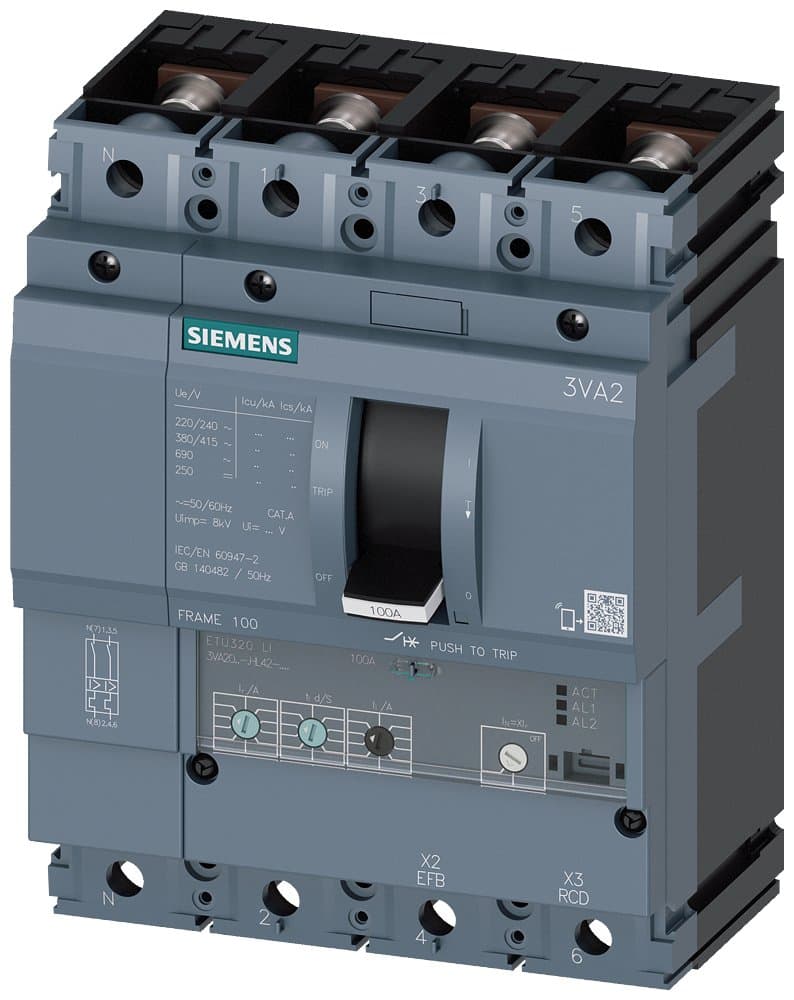

3VA2063-8HL42-0AA0
Product ID:227230
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity of 150 kA at 415 V. 2、Utilize robust IEC Frame 100 design for durable protection. 3、Implement 4-pole overload and short-circuit protection. 4、Enhance safety with line protection ETU320 technology. 5、Order immediately from available stock for fast delivery.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 150 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2L100 R63 ETU320 F/4P; 3VA2_100 dimensions; Rated Current 63A; Interrupting L:150kA; Trip Unit ETU320; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU320 [Electronic Type LI] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 150 | Interrupting Rating: | L:150kA |
| Rated Current In(A): | 63 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2063-8HL42-0AA0 |
Specifications may be subject to change without notice
