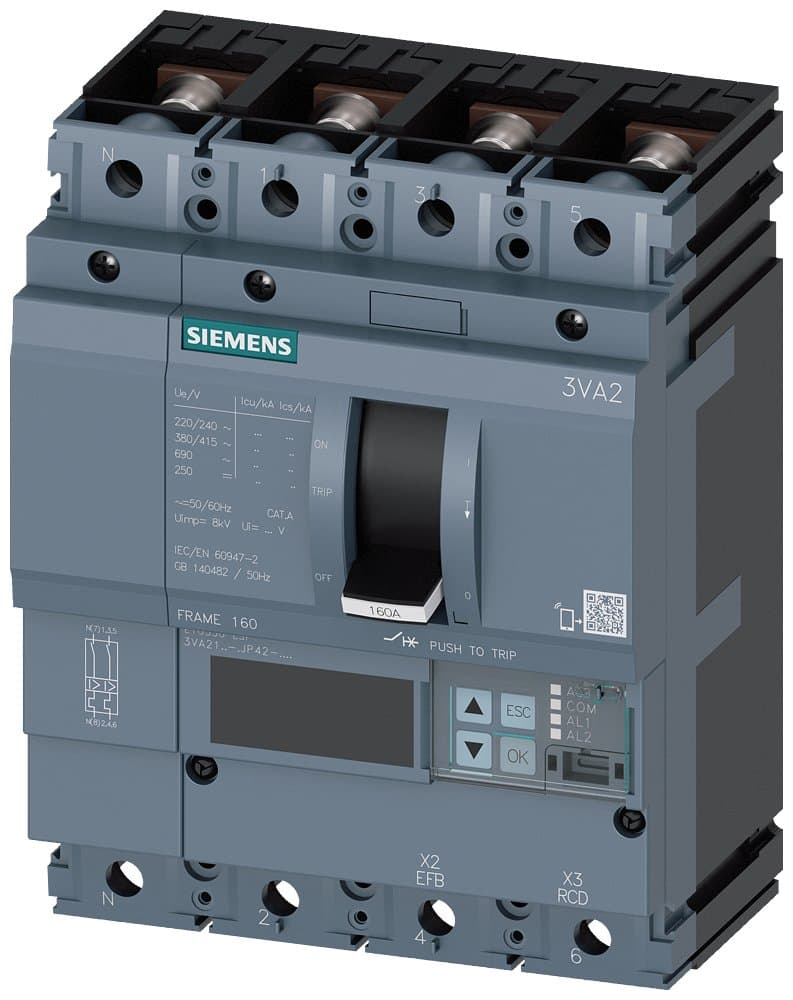

3VA2110-5JP42-0AA0
Product ID:102103
Updated: 2026/7/2
Key Features
- 1Achieve high breaking capacity up to 55 kA at 415 V.
- 2Enable selective protection for enhanced safety and system efficiency.
- 3Integrate metering functions for precise energy management and cost control.
- 4Utilize a compact design with flexible fixed, plug-in, or draw-out mounting.
- 5Benefit from advanced ETU550 electronic trip units with instant protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2M160 R100 ETU550 F/4P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating M: 55kA; Trip unit ETU550; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
| Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2110-5JP42-0AA0 |
Specifications may be subject to change without notice
