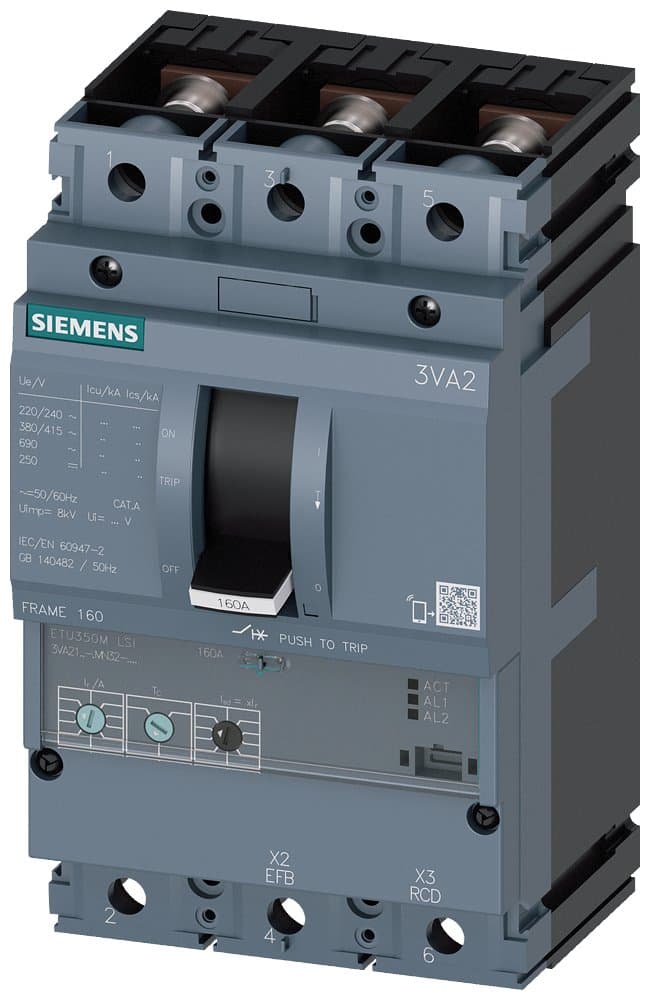

3VA2110-5MN32-0AA0
Product ID:98479
Updated: 2026/4/3
Key Features
- 1Ensure effective short-circuit protection with 55 kA at 415V. 2、Ideal for industrial applications using a compact modular design. 3、Equip with ETU350M and LSI for reliable motor protection. 4、Adjust the response current from 40A to 100A for customizable settings. 5、Build with a solid-state trip unit and high electrical endurance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M160 R100 ETU350M F/3P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating M: 55kA; Trip unit ETU350M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350M [Motor Protection LSI] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
| Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2110-5MN32-0AA0 |
Specifications may be subject to change without notice
