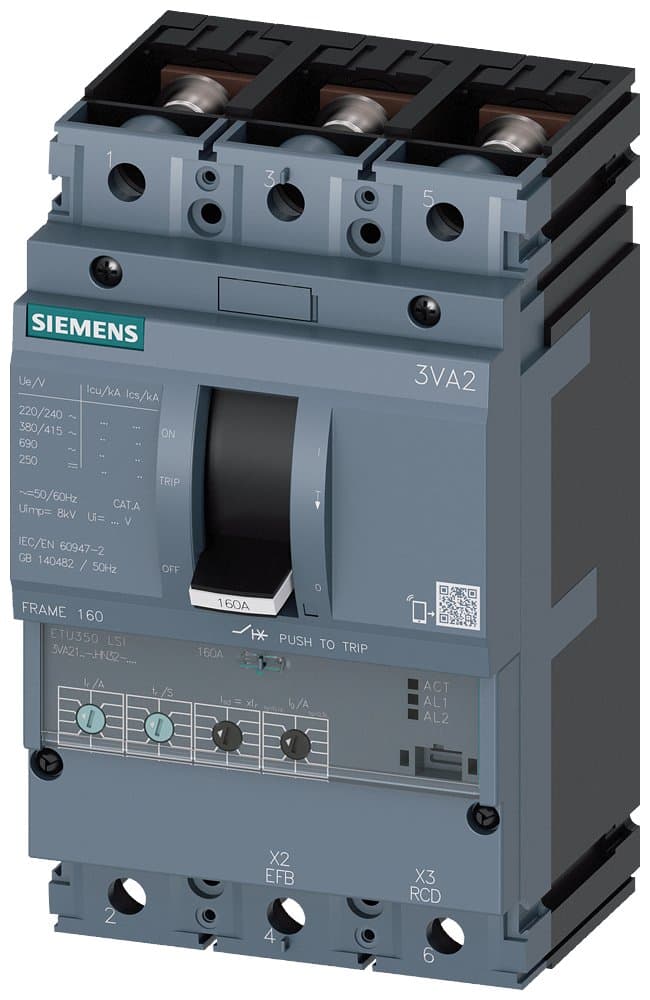

3VA2110-6HN32-0AA0
Product ID:99494
Updated: 2026/7/7
Key Features
- 1Ensure high 85 kA breaking capacity at 415V for reliable interruption.
- 2Utilize advanced ETU350 LSI protection for enhanced system safety.
- 3Configure overload protection up to 100A for secure operation.
- 4Integrate the compact IEC Frame 160 design easily.
- 5Benefit from a reliable 3-pole configuration for balanced systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H160 R100 ETU350 F/3P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating H:85kA; Trip unit ETU350; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350【Electronic LSI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 100 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2110-6HN32-0AA0 |
Specifications may be subject to change without notice
