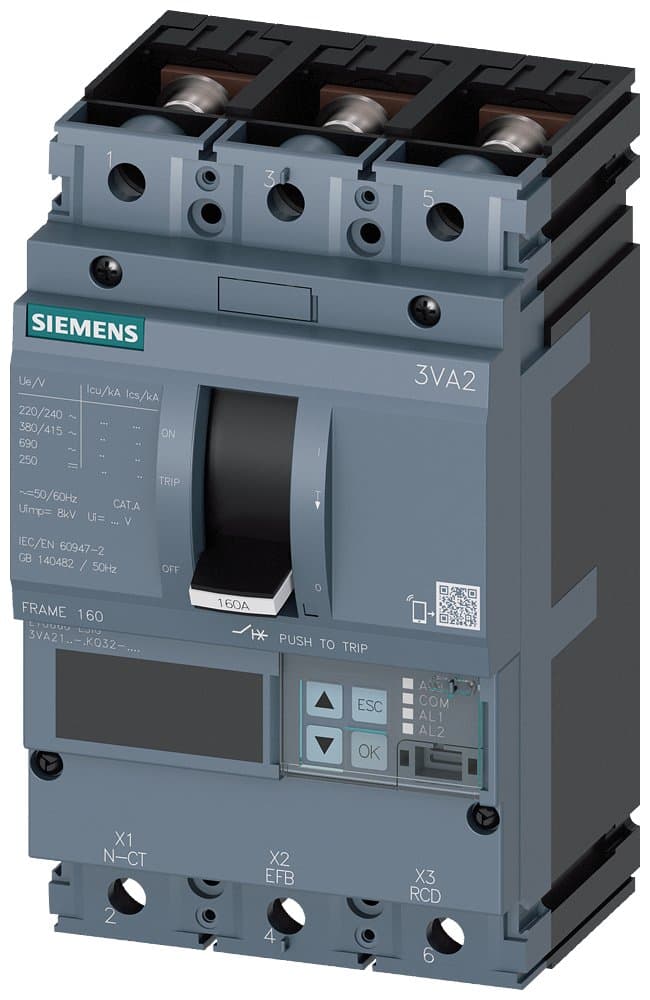

3VA2110-7KQ32-0AA0
Product ID:205523
Updated: 2026/7/5
Key Features
- 1Achieve high breaking capacity of 110 kA at 415 V.
- 2Ensure reliable line protection with ETU860 and LSIG features.
- 3Deliver efficient overload protection with a 100 A rating.
- 4Simplify installation using the compact IEC Frame 160 design.
- 5Guarantee durable performance in demanding electrical environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C160 R100 ETU860 F/3P; 3VA2_160 dimensions; Rated Current 100A; Interrupting C:110kA; Trip Unit ETU860; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860 [Electronic LSIG+LCD+Mea] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2110-7KQ32-0AA0 |
Specifications may be subject to change without notice
