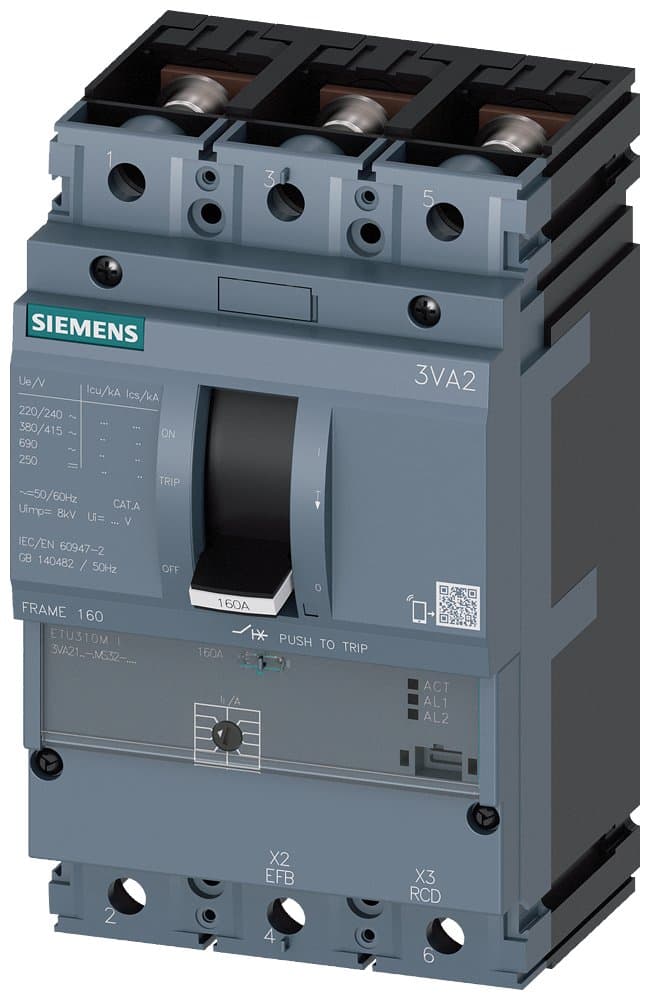

3VA2110-7MS32-0AA0
Product ID:206650
Updated: 2026/4/7
Key Features
- 1Ensure reliable short-circuit protection with 110 kA breaking capacity at 415 V. 2、Protect motor starters efficiently using the integrated ETU310M unit. 3、Build durable systems with the robust IEC Frame 160, class C design. 4、Simplify installation and maintenance via front screw terminal connections. 5、Meet industry standards with compliance to IEC 60947 and REACH regulations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C160 R100 ETU310M F/3P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating C:110kA; Trip unit ETU310M; |
| Mounting Method: | F: Fixed Installation | Trip Unit: (If not in the list, click reset, select trip unit first) | ETU310M【Electronic Only Short Circuit Protection, I adjustable】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 100 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2110-7MS32-0AA0 |
Specifications may be subject to change without notice
